Hlava válců for BMW 3 Series E30 318i (1994)

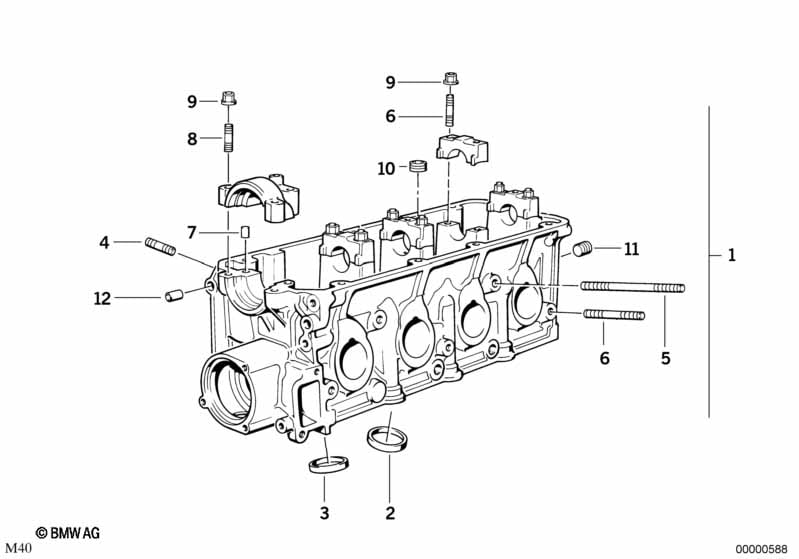

This Hlava válců technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Výměna hlava válců (prodejní akce) | 1 | 09/1989 | 11120030299 | $1623.78 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Hlava válců | 1 | 09/1989 | 11121734015 | $1925.29 | Shop at ECS Tuning | ||||
| 02 | Kroužek ventilového sedla sání | 43,55MM(+0,4) | 4 | 11121719784 | $13.16 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Kroužek ventilového sedla výfuk | 38,05MM(+0,4) | 4 | 11121715253 | $16.40 | Shop at ECS Tuning | ||||
| 04 | Závrtný šroub | M8X45 | 8 | 07129908136 | $0.29 | Shop at ECS Tuning | ||||
| 05 | Závrtný šroub | M7X100 | 2 | 07129908123 | Shop at ECS Tuning | |||||
| 06 | Závrtný šroub | M7X55 | X | 07129908122 | $0.29 | Shop at ECS Tuning | ||||
| 07 | Lícovaná objímka | D=8,3MM | X | 11121715657 | $1.25 | Shop at ECS Tuning | ||||
| 08 | Závrtný šroub | M7X45 | 2 | 07129908199 | $0.89 | Shop at ECS Tuning | ||||
| 09 | Šestihranná matice s podložkou | AM7 ZNNIV SI | X | 07129905541 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Šroubový uzávěr | M18X1,5 | 1 | 07119919017 | Shop at ECS Tuning | |||||
| 11 | Šroubový uzávěr | M10X1 | 1 | 11122244830 | $2.12 | Shop at ECS Tuning | ||||
| 12 | Lícovaná objímka | D=8,5X9MM | 2 | 11121726242 | $1.07 | Shop at ECS Tuning |
