Víko hlavy válců for BMW 5 Series E34 540i (1995)

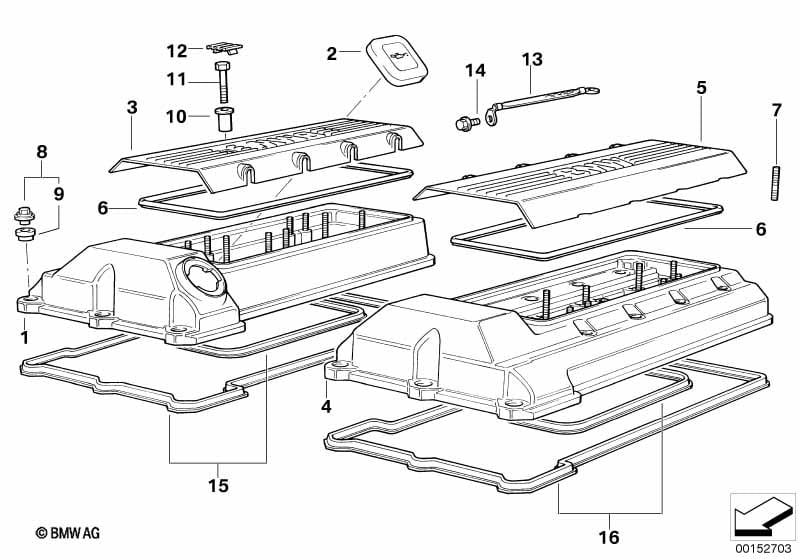

This Víko hlavy válců technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| vhodné jen pro válec 1-4 | ||||||||||
| 01 | Víko hlavy válců pravé | 1 | 11121733740 | $324.26 | Shop at ECS Tuning | |||||
| 02 | Uzavírací víko olejové plnicí hrdlo | 1 | 11127509328 | $7.78 | Shop at ECS Tuning | |||||
| 03 | Kryt pravý | 1 | 11121736003 | $21.56 | Shop at ECS Tuning | |||||
| vhodné jen pro válec 5-8 | ||||||||||
| 04 | Víko hlavy válců levé | 1 | 11121733741 | $324.26 | Shop at ECS Tuning | |||||
| 05 | Kryt levý | 1 | 11121736004 | $21.56 | Shop at ECS Tuning | |||||
| 06 | Tvarové těsnění | 2 | 11121733969 | $12.62 | Shop at ECS Tuning | |||||
| 07 | Závrtný šroub | M6X35-ZNS3 | X | 07129903886 | Shop at ECS Tuning | |||||
| 08 | Uzavřená matice | M6 | X | 11121747162 | $3.10 | Shop at ECS Tuning | ||||
| 09 | Pryžové těsnění | X | 11121437395 | $1.17 | Shop at ECS Tuning | |||||
| 10 | Distanční objímka s O-kroužkem | 4 | 11121715404 | $2.03 | Shop at ECS Tuning | |||||
| 11 | Šestihranný šroub | M6X45 8.8 ZNS3 | 4 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 12 | Odnímatelný kryt | 4 | 11121736007 | $1.10 | Shop at ECS Tuning | |||||
| 13 | Kostřicí pásek | 2 | 11121736201 | $5.78 | Shop at ECS Tuning | |||||
| 14 | Šestihranný šroub s podložkou | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| vhodné jen pro válec 1-4 | ||||||||||
| 15 | Tvarové těsnění | ZYL.1-4 | 1 | 11129069871 | $30.47 | Shop at ECS Tuning | ||||
| vhodné jen pro válec 5-8 | ||||||||||
| 16 | Tvarové těsnění | ZYL.5-8 | 1 | 11129069872 | $30.47 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 540i Víko hlavy válců?
- This technical diagram illustrates the Víko hlavy válců within the Motor group for the 5 Series E34 540i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Víko hlavy válců pravé (Part #11121733740).
- Which models use the hardware listed in this Víko hlavy válců?
- The hardware and components featured in the Víko hlavy válců are specific to the 5 Series E34 540i produced during 1995. These technical specifications ensure that parts like the Víko hlavy válců pravé (11121733740) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Víko hlavy válců assembly?
- Each item in the Víko hlavy válců corresponds to the numbered list below the illustration. For the 5 Series E34 540i, you can identify the Víko hlavy válců pravé by locating its position on the schematic, which then links to the official BMW part number 11121733740 for the Motor section.
