Rozvody-rozvodový řetěz dolní for BMW 8 Series E31 840i (1996)

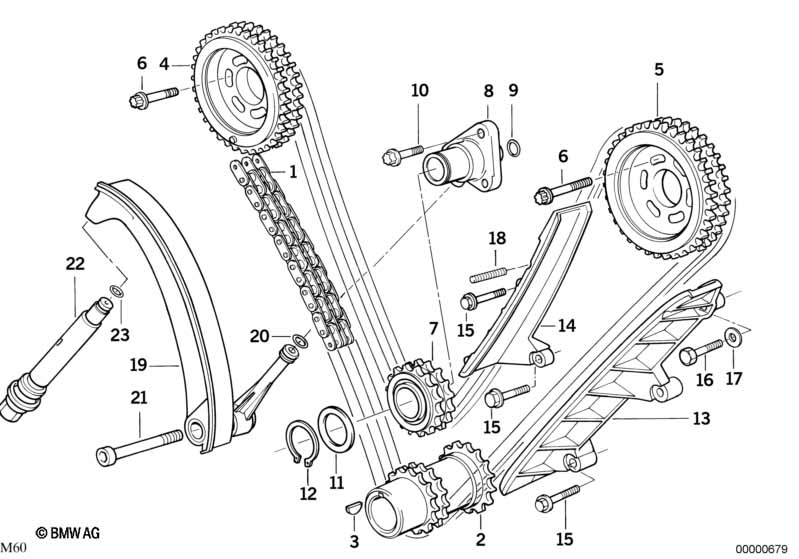

This Rozvody-rozvodový řetěz dolní technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rozvodový řetěz | 1 | 11317598263 | Shop at ECS Tuning | ||||||
| 02 | Řetězové kolo | 1 | 11211702217 | $110.43 | Shop at ECS Tuning | |||||
| 03 | Kotoučová pružina | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Řetězové kolo vstup | ZYL.1-4 | 1 | 11311736163 | $112.03 | Shop at ECS Tuning | ||||
| 05 | Řetězové kolo vstup | ZYL.5-8 | 1 | 11311736164 | $112.03 | Shop at ECS Tuning | ||||
| 06 | Šroub Torx | M6X25 | X | 11311731952 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Vodicí kolo | 1 | 11311736162 | $127.12 | Shop at ECS Tuning | |||||
| 08 | Uložení | 1 | 11311736325 | $39.18 | Shop at ECS Tuning | |||||
| 09 | O-kroužek | 11,2X1,8 | 1 | 07119906363 | $0.24 | Shop at ECS Tuning | ||||
| 10 | Šroub Torx | M6X20 | 3 | 11311736326 | $0.57 | Shop at ECS Tuning | ||||
| 11 | Vymezovací podložka | 26X37X2 | 1 | 07119932668 | $0.96 | Shop at ECS Tuning | ||||
| 12 | Pojistný kroužek | 26X1,2 | 1 | 07119934175 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Vodicí lišta | 1 | 11311736275 | $53.24 | Shop at ECS Tuning | |||||
| 14 | Vodicí lišta | ZYL.1-4 | 1 | 11311741244 | $53.24 | Shop at ECS Tuning | ||||
| 14 | Vodicí lišta | ZYL.5-8 | 1 | 11311741247 | $53.24 | Shop at ECS Tuning | ||||
| 15 | Šestihranný šroub s podložkou | M7X28-Z1 | 6 | 07119900181 | $0.30 | Shop at ECS Tuning | ||||
| 16 | Šestihranný šroub | M6X28-8.8-ZNS | 3 | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| 17 | Podložka | A6,4-ZNNIV SI | 3 | 07119904202 | Shop at ECS Tuning | |||||
| 18 | Závitový kolík | 1 | 11151736960 | $1.35 | Shop at ECS Tuning | |||||
| 19 | Napínací vedení | 1 | 11311747411 | $95.44 | Shop at ECS Tuning | |||||
| 20 | O-kroužek | 6,0X2,5 | 1 | 11421713597 | $1.29 | Shop at ECS Tuning | ||||
| 21 | Šroub Torx | M10X60 | 1 | 11311741254 | $2.12 | Shop at ECS Tuning | ||||
| 22 | Napínák řetězu | 1 | 11317531813 | $78.27 | Shop at ECS Tuning | |||||
| 23 | Těsnicí kroužek | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning |
