Kliková skříň-ventilace for BMW 5 Series E34 525i (1995)
This Kliková skříň-ventilace technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Připojovací kus | 1 | 11151703710 | $5.53 | Shop at ECS Tuning | |||||
| 02 | O-kroužek | 18,5X3,3 | 1 | 11151730724 | $3.67 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Hadice | 1 | 09/1990 | 11151735150 | $5.65 | Shop at ECS Tuning | ||||
| 04 | Připojovací kus | 1 | 11151726187 | $1.60 | Shop at ECS Tuning | |||||
| 05 | Hadice | 1 | 11151726828 | $3.30 | Shop at ECS Tuning | |||||
| 06 | Kabelová spojka | L=200MM/B=3,6MM | 1 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 07 | Uchycení | 11,5/8,0MM | 1 | 61131369832 | $0.38 | Shop at ECS Tuning | ||||

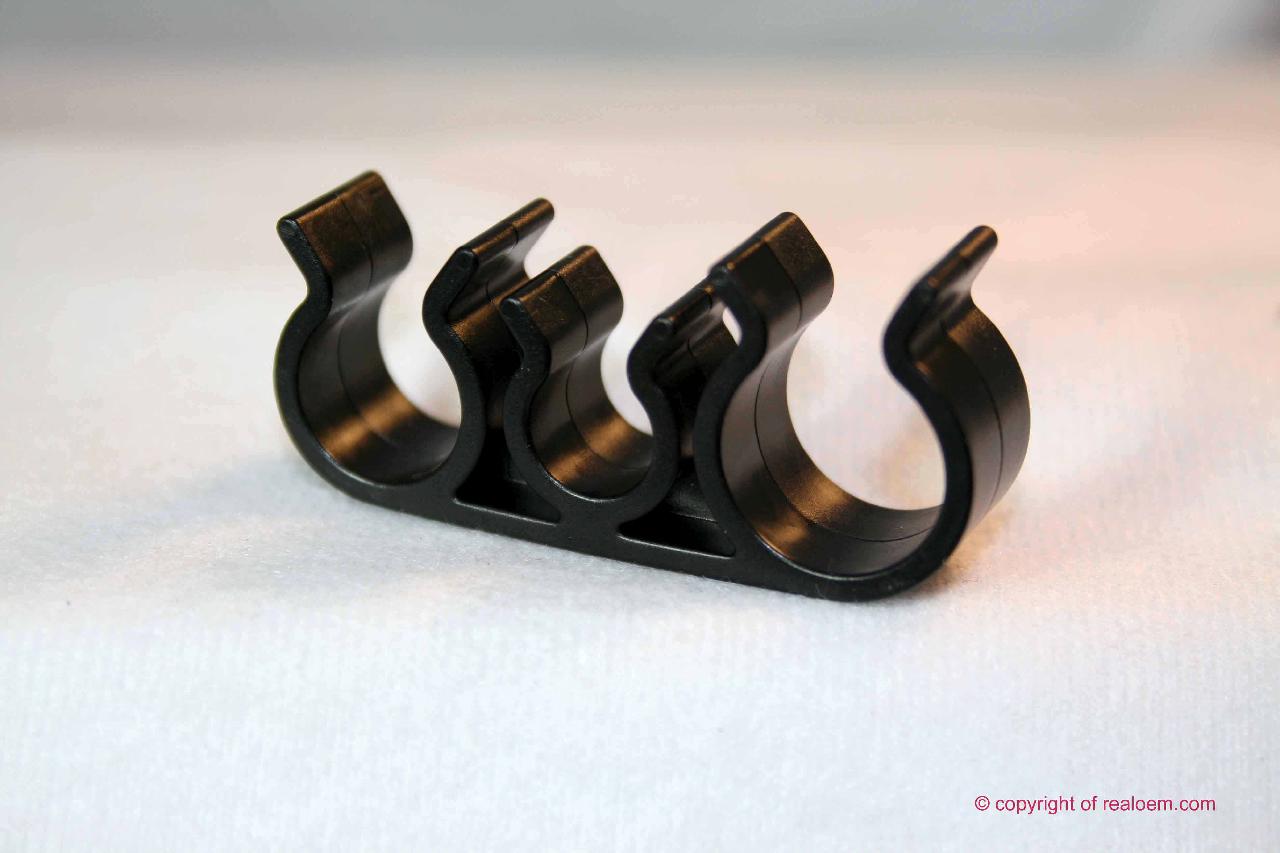

| 07 | Držák hadice | 1 | 09/1990 | 11151730413 | $1.02 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Kliková skříň-ventilace?
- This technical diagram illustrates the Kliková skříň-ventilace within the Motor group for the 5 Series E34 525i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Připojovací kus (Part #11151703710).
- Which models use the hardware listed in this Kliková skříň-ventilace?
- The hardware and components featured in the Kliková skříň-ventilace are specific to the 5 Series E34 525i produced during 1995. These technical specifications ensure that parts like the Připojovací kus (11151703710) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kliková skříň-ventilace assembly?
- Each item in the Kliková skříň-ventilace corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Připojovací kus by locating its position on the schematic, which then links to the official BMW part number 11151703710 for the Motor section.
