Klikový mechanismus-ojnice for BMW 3 Series E36 325tds (1999)

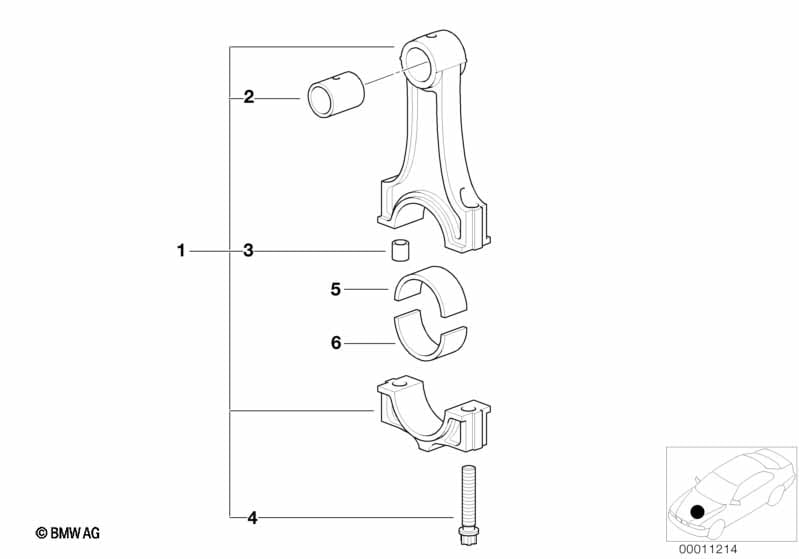

This Klikový mechanismus-ojnice technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sada ojnice | 1 | 11242243157 | $678.02 | Shop at ECS Tuning | |||||
| 02 | Zásuvka pro tyč | 6 | 11242243145 | $4.18 | Shop at ECS Tuning | |||||
| 03 | Lícovaná objímka | 7,5X11,2 | 12 | 11241280833 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Ojniční šroub | L=53MM | 12 | 11241713342 | $6.32 | Shop at ECS Tuning | ||||
| 05 | Ložisková pánev modrá | 45,00MM(0) | 6 | 11247810425 | $23.32 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Ložisková pánev | 45,00MM(0) | 1 | 11247810426 | $23.32 | Shop at ECS Tuning | ||||
| 05 | Ložisková pánev modrá | 44,75MM(+0,25) | 6 | 11247810879 | $32.93 | UKONČENO | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| 05 | Ložisková pánev modrá | 44,75MM(+0,25) | 6 | 11247810879 | $32.93 | UKONČENO | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Ložisková pánev | 44,75MM(+0,25) | 1 | 11247810881 | $23.32 | Shop at ECS Tuning | ||||
| 05 | Ložisková pánev modrá | 44,50MM(+0,50) | 6 | 11247810880 | UKONČENO | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| 05 | Ložisková pánev modrá | 44,50MM(+0,50) | 6 | 11247810880 | UKONČENO | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Ložisková pánev | 44,50MM(+0,50) | 1 | 11247810882 | $23.32 | Shop at ECS Tuning | ||||
| 06 | Ložisková pánev | 45,00MM(0) | 6 | 11247810426 | $23.32 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Ložisková pánev modrá | 45,00MM(0) | 1 | 11247810425 | $23.32 | Shop at ECS Tuning | ||||
| 06 | Ložisková pánev | 44,75MM(+0,25) | 6 | 11247810881 | $23.32 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Ložisková pánev modrá | 44,75MM(+0,25) | 1 | 11247810879 | $32.93 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Ložisková pánev | 44,50MM(+0,50) | 6 | 11247810882 | $23.32 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| 06 | Ložisková pánev | 44,50MM(+0,50) | 6 | 11247810882 | $23.32 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Ložisková pánev modrá | 44,50MM(+0,50) | 1 | 11247810880 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
