Výfukové turbodmychadlo s mazáním for BMW 2 Series F46 Gran Tourer LCI 220d

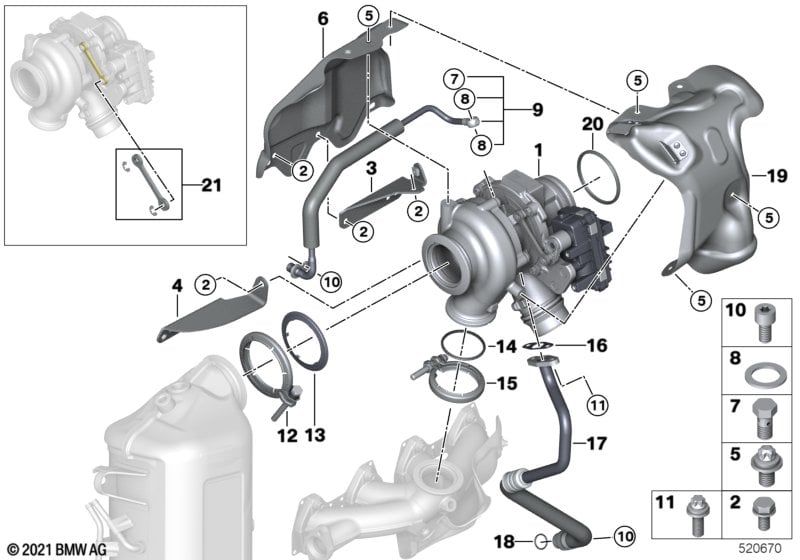

This Výfukové turbodmychadlo s mazáním technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 220d. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dodržujte prosím závazně návod k opravě 11 65 020 ! |
||||||||||
| 01 | Výfukové turbodmychadlo | 1 | 11658570081 | Shop at ECS Tuning | ||||||
| pouze společně s | ||||||||||
| -- | Sada pro montáž výfuk.turbodmychadla | VALUE PARTS | 1 | 11655A74B42 | Shop at ECS Tuning | |||||
| -- | Mont.sada vedení mot.oleje | VALUE PARTS | 1 | 11425A74B44 | Shop at ECS Tuning | |||||
| 02 | Šestihranný šroub s podložkou | M8X16 | 6 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Výztuha | 1 | 11658513637 | Shop at ECS Tuning | ||||||
| 04 | Výztuha | 1 | 11658575742 | Shop at ECS Tuning | ||||||
| 05 | Šroub s válc.hlavou s vnit.šestihranem | M6X12 8.8 | 4 | 07119908672 | Shop at ECS Tuning | |||||
| 06 | Plech.tepelný štít výfuk.turbodmychadla | 1 | 11658571892 | Shop at ECS Tuning | ||||||
| 07 | Dutý šroub | M10X1-ZNNIV SI | 1 | 07119907291 | Shop at ECS Tuning | |||||
| 08 | Těsnicí kroužek | 2 | 11427100363 | NoS | Shop at ECS Tuning | |||||
| 09 | Olejové vedení | 1 | 11428472392 | Shop at ECS Tuning | ||||||
| 10 | Isa-šroub | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 11 | ASA-Šroub | BM6X16-ZNNIV SI | 2 | 07119907573 | Shop at ECS Tuning | |||||
| 12 | Pásková spona V | 1 | 18308512137 | Shop at ECS Tuning | ||||||
| 13 | Těsnění | 1 | 18308513651 | Shop at ECS Tuning | ||||||
| 14 | Těsnicí kroužek | 1 | 11628519884 | Shop at ECS Tuning | ||||||
| 15 | Spona | 1 | 11628519885 | Shop at ECS Tuning | ||||||
| 16 | Těsnění bez azbestu | 1 | 11427925922 | Shop at ECS Tuning | ||||||
| 17 | Zpětné potrubí | 1 | 11428513615 | Shop at ECS Tuning | ||||||
| 18 | O-kroužek | 16X2MM | 1 | 11428604872 | Shop at ECS Tuning | |||||
| 19 | Plech.tepelný štít výfuk.turbodmychadla | 1 | 11658571893 | Shop at ECS Tuning | ||||||
| 20 | Tvarovaný těsnicí kroužek | 1 | 11617796622 | $6.65 | Shop at ECS Tuning | |||||
| 21 | BMW je nenabízí | 1 | 84210300311 | UKONČENO | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
- Ukončeno = Díl se již nevyrábí.
