Sací systém-vedení plnicího vzduchu for BMW 3 Series G80 M3 M3 (2024)

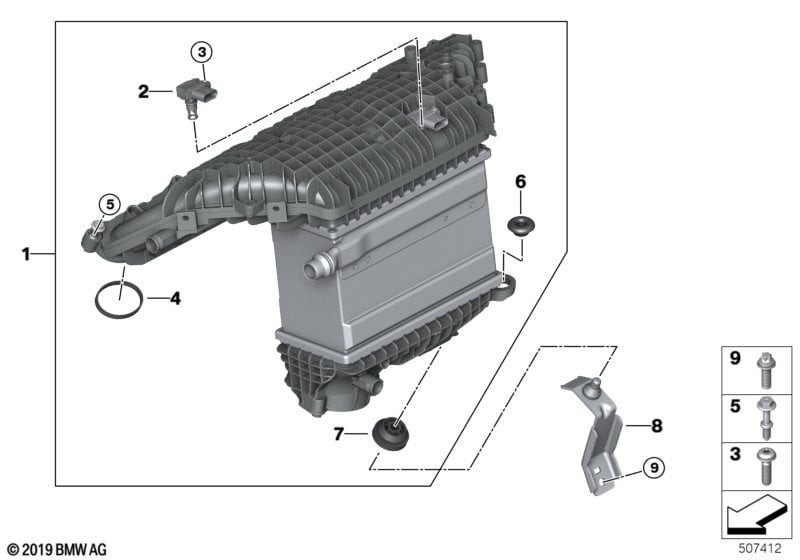

This Sací systém-vedení plnicího vzduchu technical drawing provides a detailed breakdown of the assembly for the 3 Series G80 M3 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sací systém s chladičem plnic. vzduchu | 1 | 17518092584 | Shop at ECS Tuning | ||||||
| 02 | T-Map čidlo | 2,5 BAR | 1 | 13628637900 | Shop at ECS Tuning | |||||
| 03 | Šroub | 6X20 | 1 | 07129907489 | Shop at ECS Tuning | |||||
| 04 | Těsnění sací systém | 6 | 11618637800 | Shop at ECS Tuning | ||||||
| 05 | Šroub s nákružkem | M6 | 7 | 11618583174 | Shop at ECS Tuning | |||||
| 06 | Průchodka | 1 | 17518089425 | Shop at ECS Tuning | ||||||
| 07 | Průchodka | 1 | 17518094563 | Shop at ECS Tuning | ||||||
| 08 | Držák chladič plnicího vzduchu | 1 | 17518053335 | Shop at ECS Tuning | ||||||
| 09 | Šroub Torx | M8X25 8.8 ZNS3 | 1 | 07119908535 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G80 M3 M3 Sací systém-vedení plnicího vzduchu?
- This technical diagram illustrates the Sací systém-vedení plnicího vzduchu within the Motor group for the 3 Series G80 M3 M3 produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Sací systém s chladičem plnic. vzduchu (Part #17518092584).
- Which models use the hardware listed in this Sací systém-vedení plnicího vzduchu?
- The hardware and components featured in the Sací systém-vedení plnicího vzduchu are specific to the 3 Series G80 M3 M3 produced during 2024. These technical specifications ensure that parts like the Sací systém s chladičem plnic. vzduchu (17518092584) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sací systém-vedení plnicího vzduchu assembly?
- Each item in the Sací systém-vedení plnicího vzduchu corresponds to the numbered list below the illustration. For the 3 Series G80 M3 M3, you can identify the Sací systém s chladičem plnic. vzduchu by locating its position on the schematic, which then links to the official BMW part number 17518092584 for the Motor section.
