Kliková skříň-ventilace for BMW 2 Series U06 Active Tourer 220d (2024)

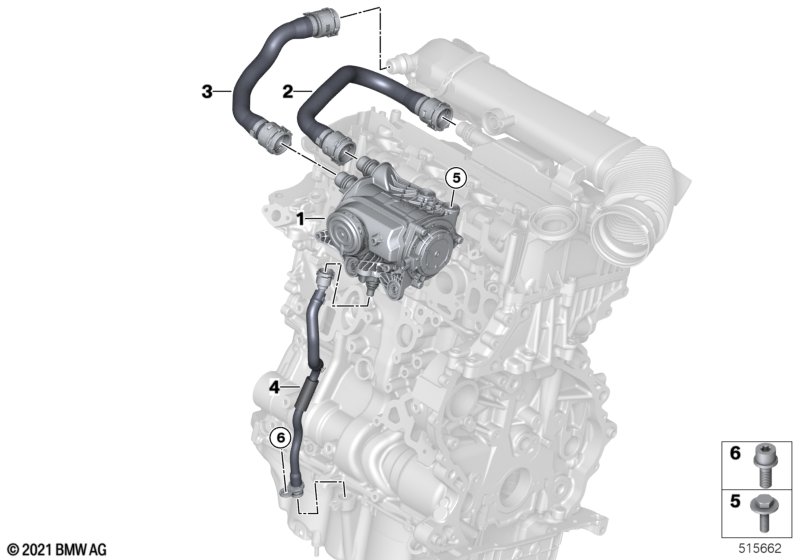

This Kliková skříň-ventilace technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Odlučovač oleje | 1 | 11158470497 | Shop at ECS Tuning | ||||||
| 02 | Přisávací trubice | 1 | 11158597016 | Shop at ECS Tuning | ||||||
| 03 | Přisávací trubice | 1 | 11158597017 | Shop at ECS Tuning | ||||||
| 04 | Zpětné vedení oleje | 1 | 11158490024 | Shop at ECS Tuning | ||||||
| 05 | Šestihranný šroub | M6X20 | 4 | 07149905728 | Shop at ECS Tuning | |||||
| 06 | Šroub Torx s podložkou | M6X16-8.8-ZNNIV | 1 | 07129904819 | $0.38 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 220d Kliková skříň-ventilace?
- This technical diagram illustrates the Kliková skříň-ventilace within the Motor group for the 2 Series U06 Active Tourer 220d produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Odlučovač oleje (Part #11158470497).
- Which models use the hardware listed in this Kliková skříň-ventilace?
- The hardware and components featured in the Kliková skříň-ventilace are specific to the 2 Series U06 Active Tourer 220d produced during 2024. These technical specifications ensure that parts like the Odlučovač oleje (11158470497) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kliková skříň-ventilace assembly?
- Each item in the Kliková skříň-ventilace corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 220d, you can identify the Odlučovač oleje by locating its position on the schematic, which then links to the official BMW part number 11158470497 for the Motor section.
