Sací syst.-rec.výf.plynů s ovl.škrt.kla. for BMW 2 Series U06 Active Tourer 218d (2025)

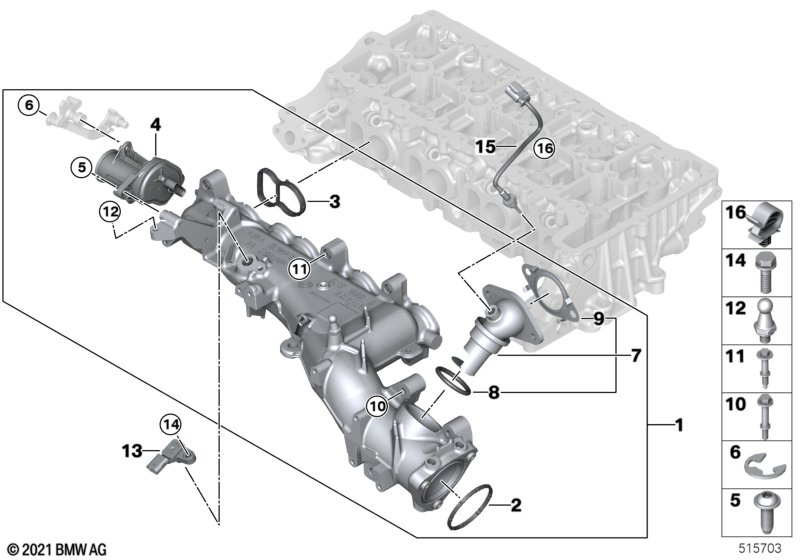

This Sací syst.-rec.výf.plynů s ovl.škrt.kla. technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sací syst.-rec.výf.plynů s ovl.škrt.kla. | 1 | 11619885829 | Shop at ECS Tuning | ||||||
| 02 | Těsnění hrdlo škrticí klapky | 1 | 11619888561 | Shop at ECS Tuning | ||||||
| 03 | Tvarové těsnění | 4 | 11618477111 | Shop at ECS Tuning | ||||||
| 04 | Seřizovací jednotka | 1 | 11618477109 | Shop at ECS Tuning | ||||||
| 05 | Šroub s čočkovou hlavou | M5X20-8.8-ZNNIV | 3 | 11617925788 | Shop at ECS Tuning | |||||
| 06 | Pojistný kroužek | 1 | 11619888562 | Shop at ECS Tuning | ||||||
| 07 | Potrubí recirk.výfuk.plynů | 1 | 11619888953 | Shop at ECS Tuning | ||||||
| 08 | O-kroužek | 1 | 11613465970 | NoS | Shop at ECS Tuning | |||||
| 09 | Těsnění potrubí recirk.výfuk.plynů | 1 | 11619888952 | Shop at ECS Tuning | ||||||
| 10 | Upevňovací prvek | M6X45,5 | 2 | 07148490196 | Shop at ECS Tuning | |||||
| 11 | Upevňovací prvek | M6X36,5 | 5 | 07148490193 | Shop at ECS Tuning | |||||
| 12 | Kulový čep | 2 | 13717507180 | Shop at ECS Tuning | ||||||
| 13 | Snímač tlaku | 1 | 13628489539 | Shop at ECS Tuning | ||||||
| 14 | Šestihranný šroub s podložkou | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 15 | Snímač teploty RVP | L=216MM | 1 | 13628576316 | Shop at ECS Tuning | |||||
| 16 | Držák vedení | 1 | 12521741316 | $0.47 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Díl není centrálně skladován.)
