Přívod oleje-olej. filtr, výměník tepla for BMW 2 Series F74 Gran Coupé 220 (2025)

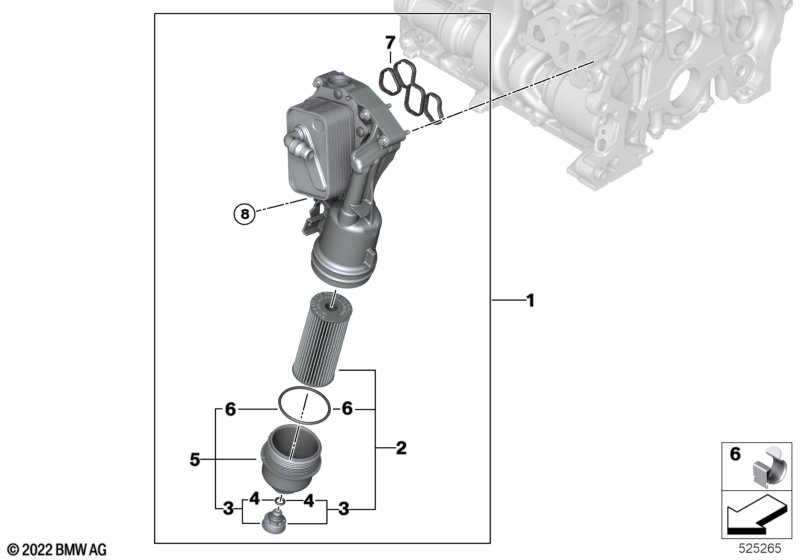

This Přívod oleje-olej. filtr, výměník tepla technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 220. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Olejový filtr | 1 | 11427952796 | Shop at ECS Tuning | ||||||
| 02 | Sada vložka olejového filtru | 1 | 11428570590 | Shop at ECS Tuning | ||||||
| 03 | Šroubový uzávěr | 1 | 11428575906 | Shop at ECS Tuning | ||||||
| 04 | Těsnicí kroužek | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Víko olejového filtru | 1 | 11427926135 | Shop at ECS Tuning | ||||||
| 06 | Těsnicí kroužek | 59 X 3,5 | 1 | 11428595437 | Shop at ECS Tuning | |||||
| 07 | Sada těsnění | 1 | 11427926136 | Shop at ECS Tuning | ||||||
| 08 | Svorka | 15-19 | 1 | 07147568538 | $3.49 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F74 Gran Coupé 220 Přívod oleje-olej. filtr, výměník tepla?
- This technical diagram illustrates the Přívod oleje-olej. filtr, výměník tepla within the Motor group for the 2 Series F74 Gran Coupé 220 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Olejový filtr (Part #11427952796).
- Which models use the hardware listed in this Přívod oleje-olej. filtr, výměník tepla?
- The hardware and components featured in the Přívod oleje-olej. filtr, výměník tepla are specific to the 2 Series F74 Gran Coupé 220 produced during 2025. These technical specifications ensure that parts like the Olejový filtr (11427952796) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Přívod oleje-olej. filtr, výměník tepla assembly?
- Each item in the Přívod oleje-olej. filtr, výměník tepla corresponds to the numbered list below the illustration. For the 2 Series F74 Gran Coupé 220, you can identify the Olejový filtr by locating its position on the schematic, which then links to the official BMW part number 11427952796 for the Motor section.
