Kliková skříň-ventilace for BMW 5 Series G60 Limuzína 530i (2024)

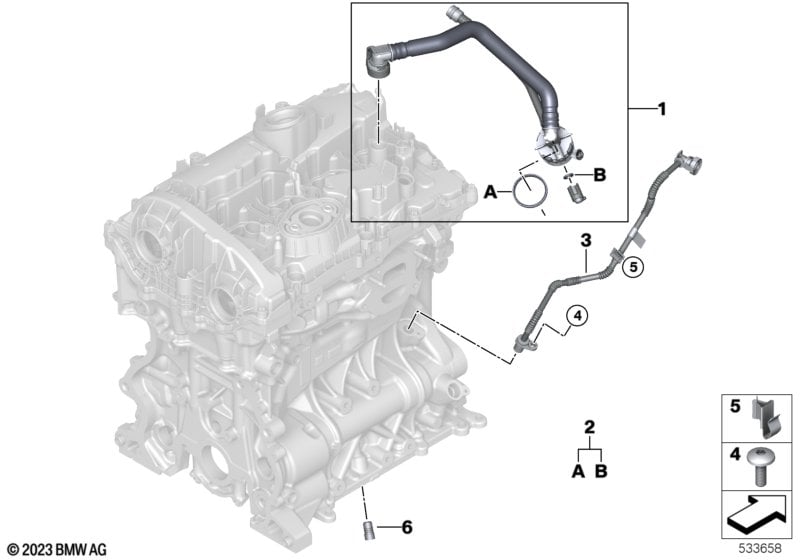

This Kliková skříň-ventilace technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Limuzína 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Odvětrávací vedení motoru | 1 | 11159470813 | Shop at ECS Tuning | ||||||
| 02 | Těsnicí sada odvětrávacího vedení motoru | 1 | 11155A33228 | Shop at ECS Tuning | ||||||
| 03 | Vedení profukovacího vzduchu | 1 | 12/2024 | 11155A26150 | Shop at ECS Tuning | |||||
| 03 | Vedení profukovacího vzduchu | 1 | 11155A99A75 | Shop at ECS Tuning | ||||||
| 04 | Šroub s čočkovitou hlavou | 1 | 07142994134 | Shop at ECS Tuning | ||||||
| 05 | Svorka vlnovec | 1 | 12527531756 | $0.83 | Shop at ECS Tuning | |||||
| 06 | Zpětný ventil | 1 | 11128591869 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Limuzína 530i Kliková skříň-ventilace?
- This technical diagram illustrates the Kliková skříň-ventilace within the Motor group for the 5 Series G60 Limuzína 530i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Odvětrávací vedení motoru (Part #11159470813).
- Which models use the hardware listed in this Kliková skříň-ventilace?
- The hardware and components featured in the Kliková skříň-ventilace are specific to the 5 Series G60 Limuzína 530i produced during 2024. These technical specifications ensure that parts like the Odvětrávací vedení motoru (11159470813) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kliková skříň-ventilace assembly?
- Each item in the Kliková skříň-ventilace corresponds to the numbered list below the illustration. For the 5 Series G60 Limuzína 530i, you can identify the Odvětrávací vedení motoru by locating its position on the schematic, which then links to the official BMW part number 11159470813 for the Motor section.
