Kliková skříň-ventilace for BMW 5 Series G61 Touring 520d (2025)

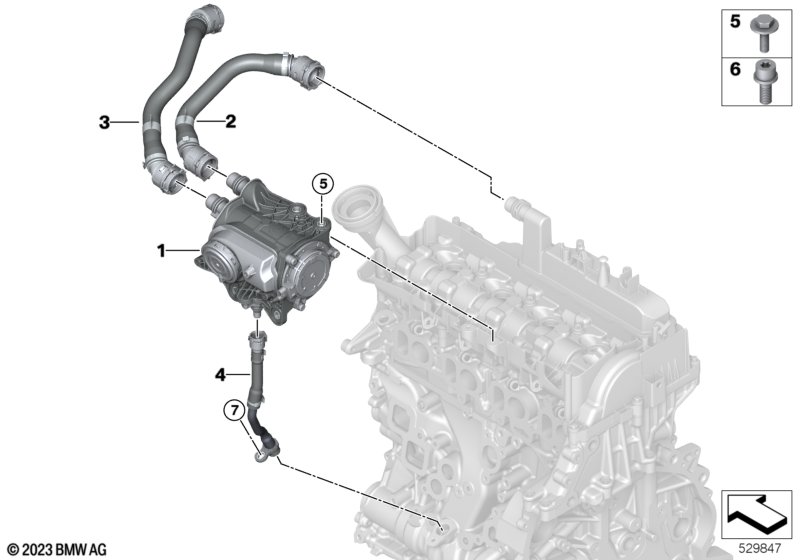

This Kliková skříň-ventilace technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Odlučovač oleje | 1 | 11158470497 | Shop at ECS Tuning | ||||||
| 02 | Přisávací trubice | 1 | 11155B41362 | NoS | Shop at ECS Tuning | |||||
| 03 | Přisávací trubice | 1 | 11158597020 | NoS | Shop at ECS Tuning | |||||
| 04 | Zpětné olejové vedení | 1 | 11158490026 | Shop at ECS Tuning | ||||||
| 05 | Šestihranný šroub | M6X20 | 4 | 07149905728 | Shop at ECS Tuning | |||||
| 06 | Šroub Torx s podložkou | M6X16-8.8-ZNNIV | 1 | 07129904819 | $0.38 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Díl není centrálně skladován.)
