Chladicí systém-skříň termostatu for BMW 5 Series G61 Touring 520d (2025)

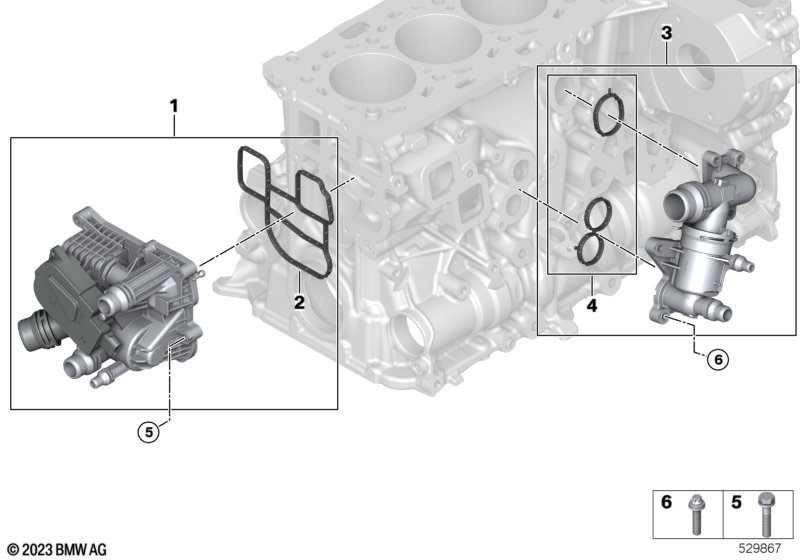

This Chladicí systém-skříň termostatu technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primární termostat | 1 | 11538471991 | Shop at ECS Tuning | ||||||
| 02 | Profilové těsnění | 1 | 11538490614 | Shop at ECS Tuning | ||||||
| 03 | Sekundární termostat | 1 | 11538473203 | NoS | Shop at ECS Tuning | |||||
| 04 | Sada těsnění | 1 | 11538490615 | NoS | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub s podložkou | M6X30-ZNNIV SI | 6 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 06 | Šroub s válc.hlavou s vnit.šestihranem | BM6X25-U1-8.8 | 6 | 07119907490 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Díl není centrálně skladován.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G61 Touring 520d Chladicí systém-skříň termostatu?
- This technical diagram illustrates the Chladicí systém-skříň termostatu within the Motor group for the 5 Series G61 Touring 520d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Primární termostat (Part #11538471991).
- Which models use the hardware listed in this Chladicí systém-skříň termostatu?
- The hardware and components featured in the Chladicí systém-skříň termostatu are specific to the 5 Series G61 Touring 520d produced during 2025. These technical specifications ensure that parts like the Primární termostat (11538471991) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Chladicí systém-skříň termostatu assembly?
- Each item in the Chladicí systém-skříň termostatu corresponds to the numbered list below the illustration. For the 5 Series G61 Touring 520d, you can identify the Primární termostat by locating its position on the schematic, which then links to the official BMW part number 11538471991 for the Motor section.
