Hlava válců/montážní díly for BMW 5 Series G61 Touring 530e (2025)

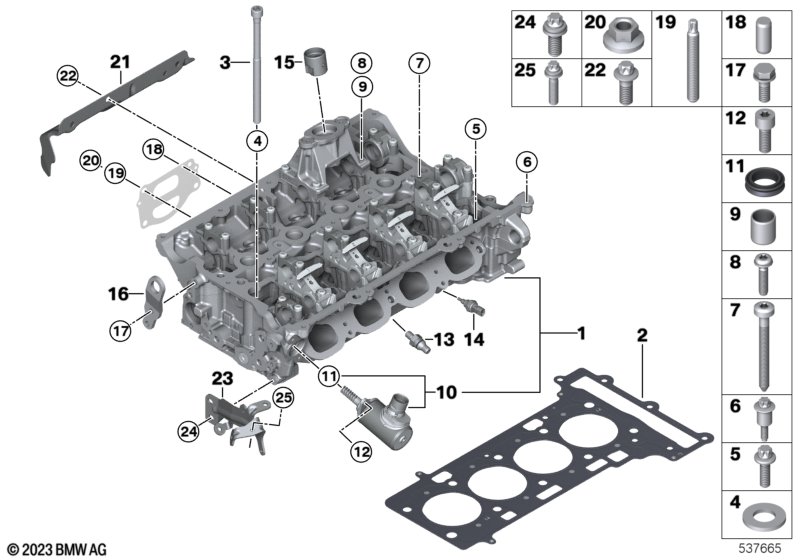

This Hlava válců/montážní díly technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hlava válců s ventilovým rozvodem | 1 | 11121019174 | Shop at ECS Tuning | ||||||
| 02 | Těsnění hlavy válců | 0,80MM | 1 | 11128481576 | Shop at ECS Tuning | |||||
| 02 | Těsnění hlavy válců | 1,10MM (+0,3) | 1 | 11128481577 | Shop at ECS Tuning | |||||
| 03 | Šroub s válcovou hlavou | M11X188 | 10 | 11128644674 | Shop at ECS Tuning | |||||
| 04 | Podložka | 10 | 11127583138 | $6.05 | Shop at ECS Tuning | |||||
| 05 | ASA-Šroub | M8X40 | 5 | 07119907475 | Shop at ECS Tuning | |||||
| 06 | ASA-Šroub | M6X29 | 14 | 11121033473 | Shop at ECS Tuning | |||||
| 07 | Šroub s plochou hlavou | M6X65-10.9 | 9 | 07149844207 | Shop at ECS Tuning | |||||
| 08 | Šroub s plochou hlavou | M6X35-10.9 | 18 | 07119909683 | Shop at ECS Tuning | |||||
| 09 | Lícovaná objímka | D=7,5MM | 18 | 11127606504 | Shop at ECS Tuning | |||||
| 10 | Servomotor | 1 | 11378652738 | Shop at ECS Tuning | ||||||
| 11 | Hřídelový těsnicí kroužek | 1 | 11378662525 | Shop at ECS Tuning | ||||||
| 12 | Isa-šroub | M6X16-8.8-ZNNIV | 6 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Odvzdušňovací hrdlo s O kroužkem | 1 | 11128626622 | Shop at ECS Tuning | ||||||
| 14 | Snímač teploty chladicího média / olej | 1 | 13627580635 | Shop at ECS Tuning | ||||||
| 15 | Zdvihátko | 1 | 11328629250 | Shop at ECS Tuning | ||||||
| 16 | Oko | 1 | 11127638711 | Shop at ECS Tuning | ||||||
| 17 | Šestihranný šroub s podložkou | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 18 | Válcový kolík | 4X16MM | 1 | 07119942082 | Shop at ECS Tuning | |||||
| 19 | ASA-Závrtný šroub | M7X58 | 2 | 11127638700 | Shop at ECS Tuning | |||||
| 20 | Přírubová matice | M7 | 2 | 11628597827 | Shop at ECS Tuning | |||||
| 21 | Izolační štít sběrné výfukové potrubí | 1 | 11655B3A034 | NoS | Shop at ECS Tuning | |||||
| 22 | Šroub s válc.hlavou s vnit.šestihranem | M8X16-8.8-ZNS3 | 2 | 07119907332 | Shop at ECS Tuning | |||||
| 23 | Opěra systému sání | 1 | 11617952862 | NoS | Shop at ECS Tuning | |||||
| 24 | Šroub s válc.hlavou s vnit.šestihranem | BM6X16-U1-8.8- | 2 | 07119908518 | Shop at ECS Tuning | |||||
| 25 | Šroub s válc.hlavou s vnit.šestihranem | M6X25 | 1 | 07119908752 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Díl není centrálně skladován.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G61 Touring 530e Hlava válců/montážní díly?
- This technical diagram illustrates the Hlava válců/montážní díly within the Motor group for the 5 Series G61 Touring 530e produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Hlava válců s ventilovým rozvodem (Part #11121019174).
- Which models use the hardware listed in this Hlava válců/montážní díly?
- The hardware and components featured in the Hlava válců/montážní díly are specific to the 5 Series G61 Touring 530e produced during 2025. These technical specifications ensure that parts like the Hlava válců s ventilovým rozvodem (11121019174) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hlava válců/montážní díly assembly?
- Each item in the Hlava válců/montážní díly corresponds to the numbered list below the illustration. For the 5 Series G61 Touring 530e, you can identify the Hlava válců s ventilovým rozvodem by locating its position on the schematic, which then links to the official BMW part number 11121019174 for the Motor section.
