Blok motoru/montážní díly for BMW 3 Series E46 330xd (2001)

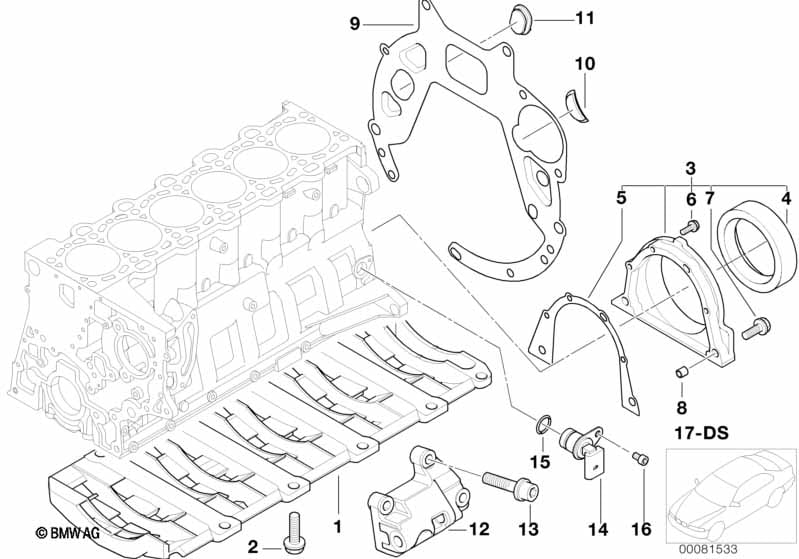

This Blok motoru/montážní díly technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Výztužná skořepina | 10 | 09/2001 | 11117793900 | $74.43 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Šestihranný šroub s podložkou | M8X28-Z1-PHR | 1 | 09/2001 | 07119904507 | $0.53 | Shop at ECS Tuning | |||
| 02 | Šestihranný šroub s podložkou | M8X20-U1-8.8 | 10 | 09/2001 | 07119904992 | $0.55 | Shop at ECS Tuning | |||
| 03 | Sada uzavírací víko | 1 | 11142247867 | $94.60 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Hřídelový těsnicí kroužek | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 05 | Těsnění kov | 1 | 11141432240 | $3.10 | Shop at ECS Tuning | |||||
| 06 | Šestihranný šroub s podložkou | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub s podložkou | M8X28-ZNNIV SI | 2 | 07119905530 | $0.71 | Shop at ECS Tuning | ||||
| 08 | Lícovaná objímka | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| Pro vozidla s Automatická převodovka |
S205A=Ne |
|||||||||
| 09 | Krycí plech | 1 | 11141734019 | $11.15 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Automatická převodovka |
S205A=Ano |
|||||||||
| 09 | Krycí plech | 1 | 11142243305 | $11.15 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Kryt | 1 | 11141722774 | Shop at ECS Tuning | ||||||
| 11 | Uzavírací víko | 1 | 11141730453 | $3.22 | Shop at ECS Tuning | |||||
| 12 | Konzola uložení alternátor | 1 | 12317793090 | $15.77 | Shop at ECS Tuning | |||||
| 13 | Šroub s válcovou hlavou s podložkou | M8X30-U1-ZNS3 | 4 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Impulzní snímač kliková hřídel | 1 | 13622247926 | Shop at ECS Tuning | ||||||
| 15 | O-kroužek | 17X3 | 1 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 16 | Šroub s válcovou hlavou | M6X16 | 1 | 11421740488 | $0.98 | Shop at ECS Tuning | ||||
| 17 | Sada těsnění kliková skříň bez azbestu | 1 | 11112248975 | $223.72 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
