Řídicí jednotka DME/impulsní snímač for BMW 5 Series E28 520i (1987)

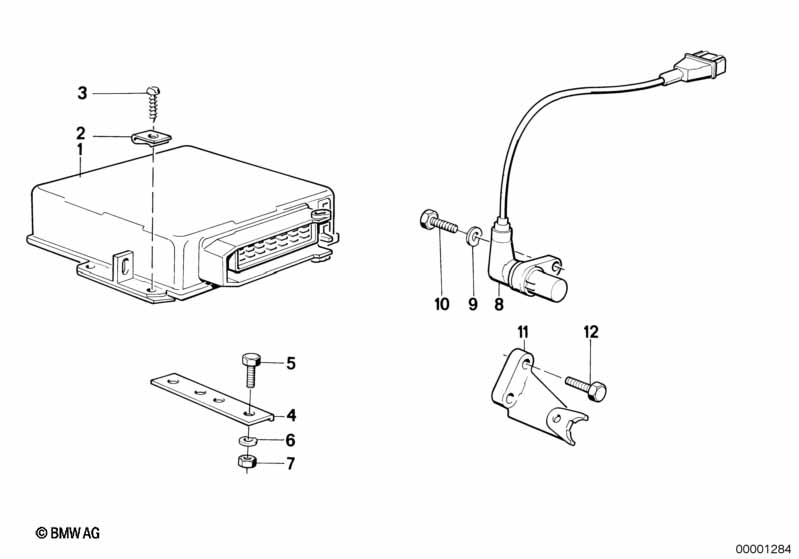

This Řídicí jednotka DME/impulsní snímač technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Provedení Japonsko |
L807A=Ano |
|||||||||
| 01 | ND-Řídicí jednotka | 1 | 12141748204 | UKONČENO | Shop at ECS Tuning | |||||
| 03 | Šestihranný šroub na plech | ST6,3X22-C-Z1 | 4 | 07119916969 | $0.29 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Uchycení | 2 | 12141286690 | $2.30 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 06 | Pružná podložka | B6 | 2 | 07119932072 | $0.09 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Pružná podložka černá | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Podložka | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Pružná podložka | B6-ZNS3 | 2 | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Šestihranná matice | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Pružná podložka | B6 | 1 | 12/1986 | 07119932072 | $0.09 | UKONČENO | Shop at ECS Tuning | ||
| 09 | Pružná podložka černá | B6-ZN | 1 | 12/1986 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 09 | Podložka | 5.3-140 HV-ZNS | 1 | 12/1986 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 09 | Pružná podložka | B6-ZNS3 | 1 | 12/1986 | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | ||
| 11 | Uchycení | 1 | 11141713173 | $5.68 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Šestihranný šroub s podložkou | M8X25-Z3 | 2 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
