Rozdělovač for BMW 5 Series E12 520 (1979)

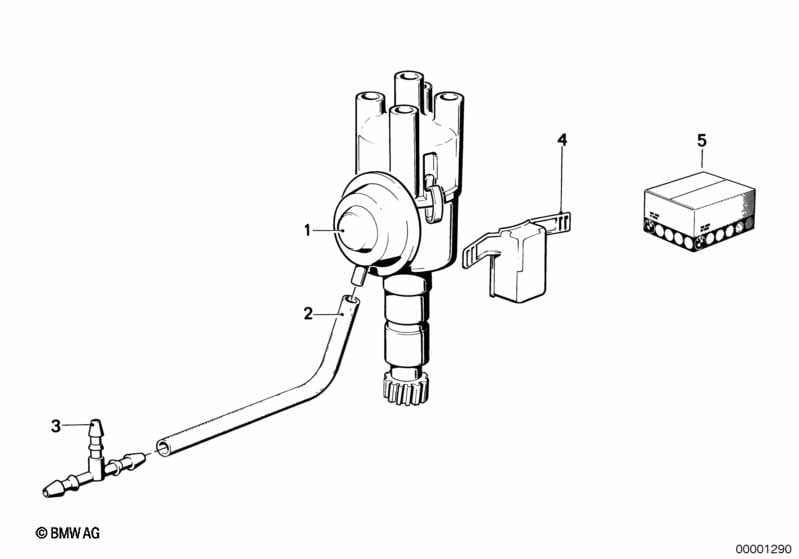

This Rozdělovač technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rozdělovač | 1 | 12/1975 | 12111364264 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Podtlaková hadice černá | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 02 | Podtlaková hadice bílá | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 03 | T-spojka | 1 | 11731261489 | $0.56 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Rozdělovač?
- This technical diagram illustrates the Rozdělovač within the Elektrika motoru group for the 5 Series E12 520 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Rozdělovač (Part #12111364264).
- Which models use the hardware listed in this Rozdělovač?
- The hardware and components featured in the Rozdělovač are specific to the 5 Series E12 520 produced during 1979. These technical specifications ensure that parts like the Rozdělovač (12111364264) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rozdělovač assembly?
- Each item in the Rozdělovač corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Rozdělovač by locating its position on the schematic, which then links to the official BMW part number 12111364264 for the Elektrika motoru section.
