Alternátor jednotlivé díly for BMW 7 Series E23 728i (1986)

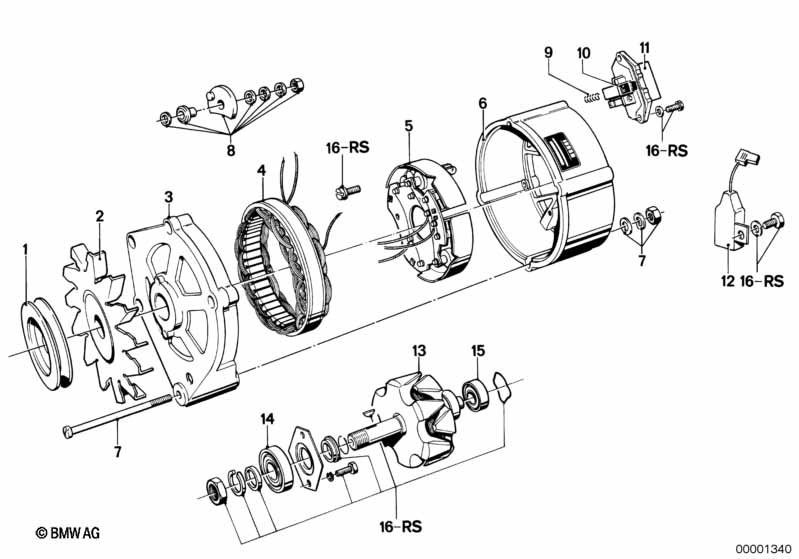

This Alternátor jednotlivé díly technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Řemenice | 1 | 06/1978 | 12313909085 | Shop at ECS Tuning | |||||
| 02 | Kolo ventilátoru | 1 | 06/1978 | 12313909086 | Shop at ECS Tuning | |||||
| 03 | Hnací ložisko | 1 | 06/1978 | 12313909088 | Shop at ECS Tuning | |||||
| 04 | Kruhové vinutí | 1 | 06/1978 | 12313909089 | Shop at ECS Tuning | |||||
| 05 | Diodová deska | 1 | 06/1978 | 12313909090 | Shop at ECS Tuning | |||||
| 06 | Ložisko kluzného kroužku | 1 | 06/1978 | 12313909091 | Shop at ECS Tuning | |||||
| 07 | Sada upevňovací díly | 1 | 06/1978 | 12313909092 | Shop at ECS Tuning | |||||
| 08 | Sada upevňovací díly | 1 | 06/1978 | 12313909093 | Shop at ECS Tuning | |||||
| 09 | Tlačná pružina | 2 | 06/1978 | 12313909094 | Shop at ECS Tuning | |||||
| 10 | Sada uhlíkových kartáčů | 1 | 06/1978 | 12313909095 | Shop at ECS Tuning | |||||
| 11 | Regulátor | 1 | 06/1978 | 12313909096 | Shop at ECS Tuning | |||||
| 12 | Kondenzátor | 1 | 06/1978 | 12313909097 | Shop at ECS Tuning | |||||
| 13 | Rotor | 1 | 06/1978 | 12313909098 | Shop at ECS Tuning | |||||
| 14 | Kuličkové ložisko | 1 | 06/1978 | 12313909099 | Shop at ECS Tuning | |||||
| 15 | Kuličkové ložisko | 1 | 06/1978 | 12313909100 | Shop at ECS Tuning | |||||
| 16 | Opravná sada alternátor | 1 | 06/1978 | 12313909101 | Shop at ECS Tuning |
