Alternátor upevňovací díly for BMW 5 Series E12 518 (1981)

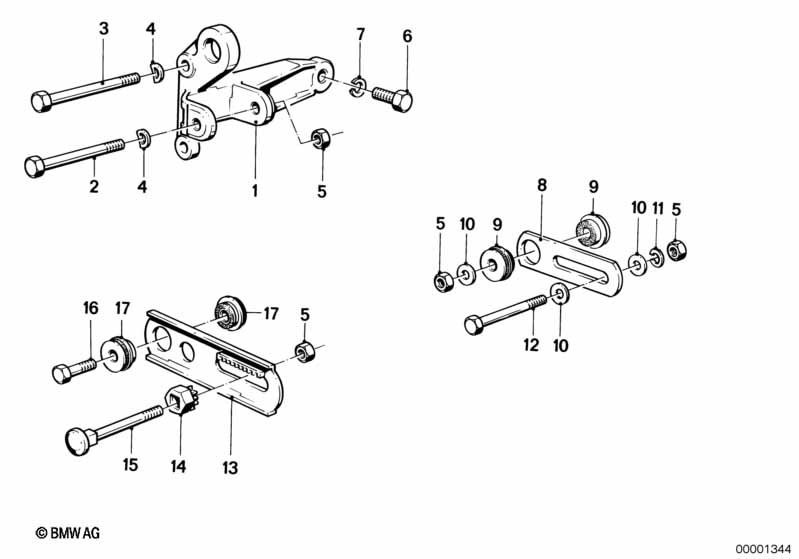

This Alternátor upevňovací díly technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Šestihranný šroub | M8X75-8.8-ZNS3 | 1 | 07119906028 | Shop at ECS Tuning | |||||
| 01 | Konzola uložení | 1 | 12318602032 | $42.58 | Shop at ECS Tuning | |||||
| 02 | Šestihranný šroub | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| 04 | Pružná podložka | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub | M10X20-10.9-PHR | 1 | 07119913830 | $0.43 | Shop at ECS Tuning | ||||
| 07 | Pružná podložka | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||

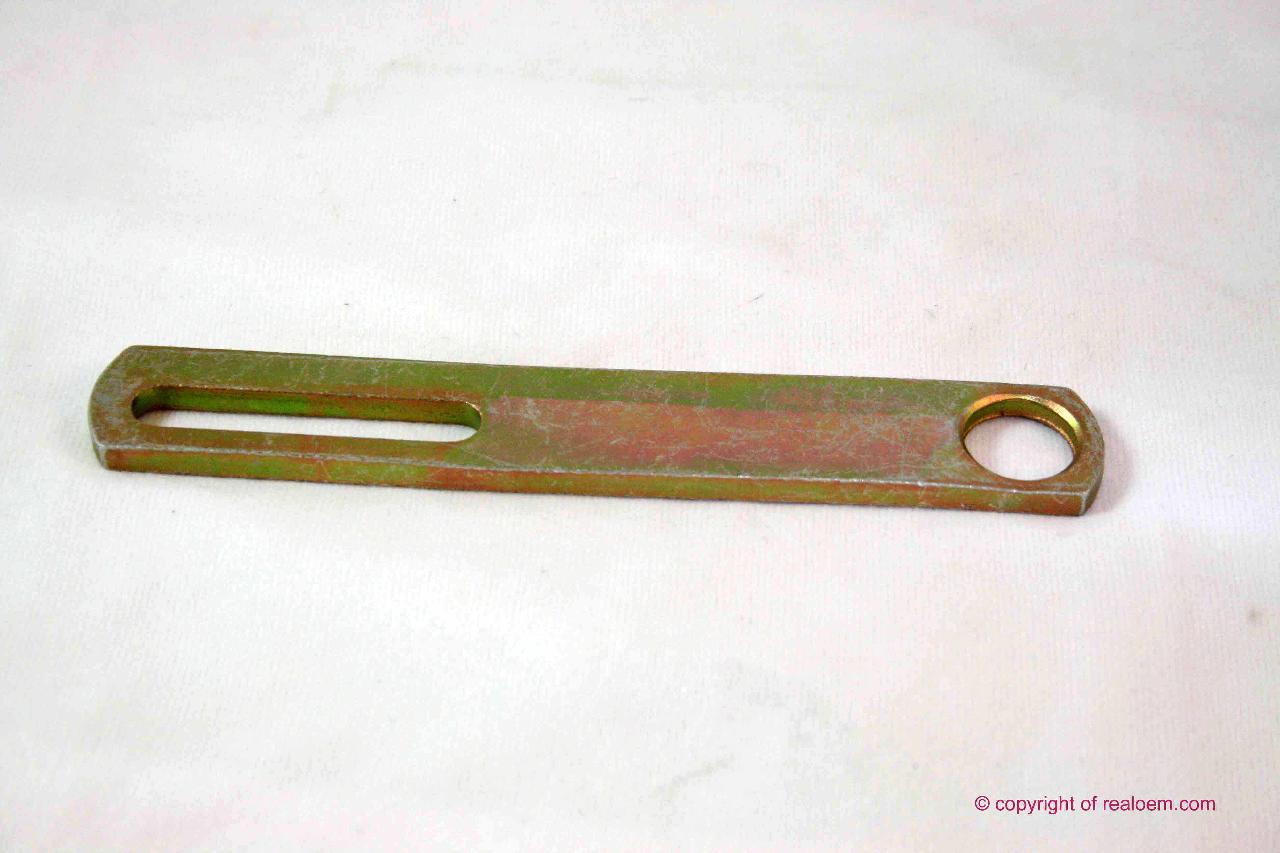

| 08 | Upínací příložka | 1 | 12318602037 | $5.03 | Shop at ECS Tuning | |||||
| 09 | Pouzdro | 2 | 11721261404 | $7.58 | Shop at ECS Tuning | |||||
| 10 | Podložka | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Podložka | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Šestihranný šroub | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Pružný kroužek | B8 | 1 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Upínací příložka | 1 | 12311273638 | $5.35 | Shop at ECS Tuning | |||||
| 14 | Přítlačný kroužek | 1 | 12317677914 | $4.26 | Shop at ECS Tuning | |||||
| 15 | Šroub s plochou kulovou hlavou | M8X50 | 1 | 12311276540 | $0.93 | UKONČENO | Shop at ECS Tuning | |||
| 16 | Šestihranný šroub | M8X28-ZN | 1 | 07119913659 | $0.47 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
