Alternátor upevňovací díly for BMW 7 Series E23 733i (1985)

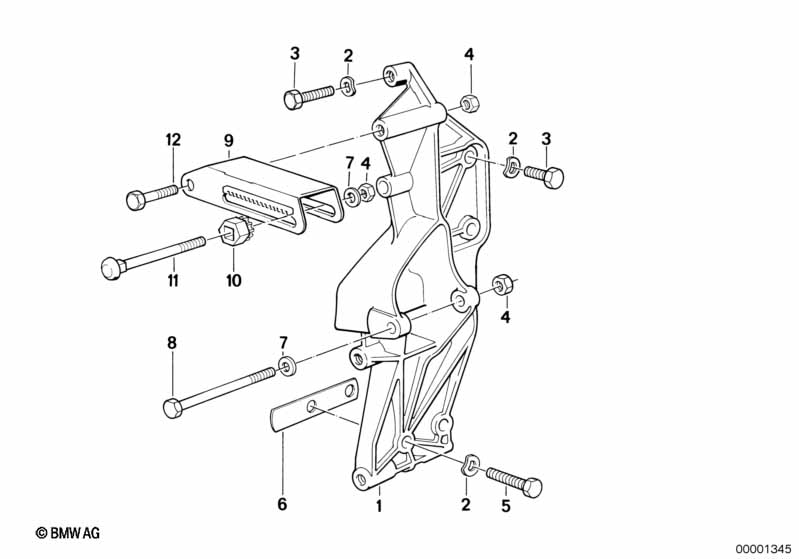

This Alternátor upevňovací díly technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Konzola uložení | 1 | 04/1981 | 11/1985 | 12311277342 | $102.97 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Pružná podložka | 8,4X15-ZNS3 | 6 | 04/1981 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 03 | Šestihranný šroub | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
| 03 | Šestihranný šroub | M8X25-8.8-ZNNIV | 2 | 04/1981 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 03 | Šestihranný šroub | M8X25 | 2 | 04/1981 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 03 | Šestihranný šroub | M8X35 | 2 | 04/1981 | 07119913676 | $0.36 | Shop at ECS Tuning | |||
| 04 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 2 | 04/1981 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 05 | Šestihranný šroub | M8X40-ZNNIV SI | 2 | 04/1981 | 07119905549 | $1.05 | Shop at ECS Tuning | |||
| 06 | Distanční plech | 0,50MM | X | 04/1981 | 12311278161 | $0.20 | UKONČENO | Shop at ECS Tuning | ||
| 06 | Distanční plech | 0,80MM | X | 04/1981 | 12311278162 | $0.20 | Shop at ECS Tuning | |||
| 06 | Distanční plech | 1,00MM | X | 04/1981 | 12311278163 | $0.20 | Shop at ECS Tuning | |||
| 07 | Podložka | 8,4X16X1,6-ZNNV | 2 | 04/1981 | 07119907030 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub | M8X90-8.8-ZNS | 1 | 04/1981 | 07119912471 | $2.80 | Shop at ECS Tuning | |||
| 09 | Upínací příložka | 1 | 04/1981 | 11/1985 | 12311274747 | $5.35 | UKONČENO | Shop at ECS Tuning | ||
| 10 | Přítlačný kroužek | 1 | 04/1981 | 12317677914 | $4.26 | Shop at ECS Tuning | ||||
| 11 | Šroub s plochou kulovou hlavou | M8X80 | 1 | 04/1981 | 12311276516 | $2.40 | Shop at ECS Tuning | |||
| 12 | Šestihranný šroub | M8X55 | 1 | 04/1981 | 11/1985 | 07119912524 | $0.54 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Alternátor upevňovací díly?
- This technical diagram illustrates the Alternátor upevňovací díly within the Elektrika motoru group for the 7 Series E23 733i produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Konzola uložení (Part #12311277342).
- Which models use the hardware listed in this Alternátor upevňovací díly?
- The hardware and components featured in the Alternátor upevňovací díly are specific to the 7 Series E23 733i produced during 1985. These technical specifications ensure that parts like the Konzola uložení (12311277342) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternátor upevňovací díly assembly?
- Each item in the Alternátor upevňovací díly corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Konzola uložení by locating its position on the schematic, which then links to the official BMW part number 12311277342 for the Elektrika motoru section.
