Alternátor-chlazení for BMW 5 Series E34 525i (1995)

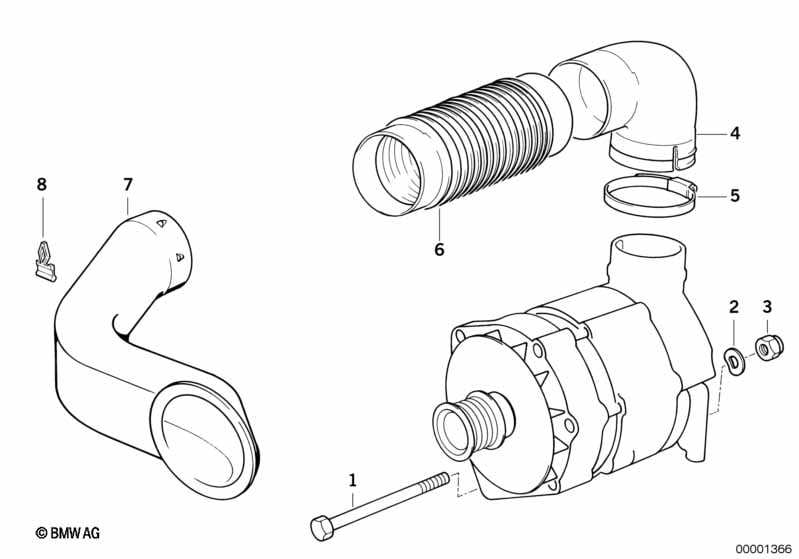

This Alternátor-chlazení technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Šestihranný šroub s podložkou | M10X125 | 1 | 04/1995 | 07119905523 | $2.84 | Shop at ECS Tuning | |||
| 02 | Pružná podložka | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 03 | Šestihranná matice samojisticí | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Vlnovec | 1 | 09/1991 | 12311735709 | $19.53 | Shop at ECS Tuning | ||||
| 05 | hadicová spona | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 06 | Vlnovec | 1 | 09/1991 | 12311735709 | $19.53 | Shop at ECS Tuning | ||||
| 07 | Sací hrdlo | 1 | 09/1991 | 12311735708 | $20.42 | Shop at ECS Tuning | ||||
| 08 | Uchycení | 1 | 12311730061 | $0.53 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Alternátor-chlazení?
- This technical diagram illustrates the Alternátor-chlazení within the Elektrika motoru group for the 5 Series E34 525i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Šestihranný šroub s podložkou (Part #07119905523).
- Which models use the hardware listed in this Alternátor-chlazení?
- The hardware and components featured in the Alternátor-chlazení are specific to the 5 Series E34 525i produced during 1995. These technical specifications ensure that parts like the Šestihranný šroub s podložkou (07119905523) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternátor-chlazení assembly?
- Each item in the Alternátor-chlazení corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Šestihranný šroub s podložkou by locating its position on the schematic, which then links to the official BMW part number 07119905523 for the Elektrika motoru section.
