Upevňovací díly startéru for BMW 7 Series E32 750iLS (1994)

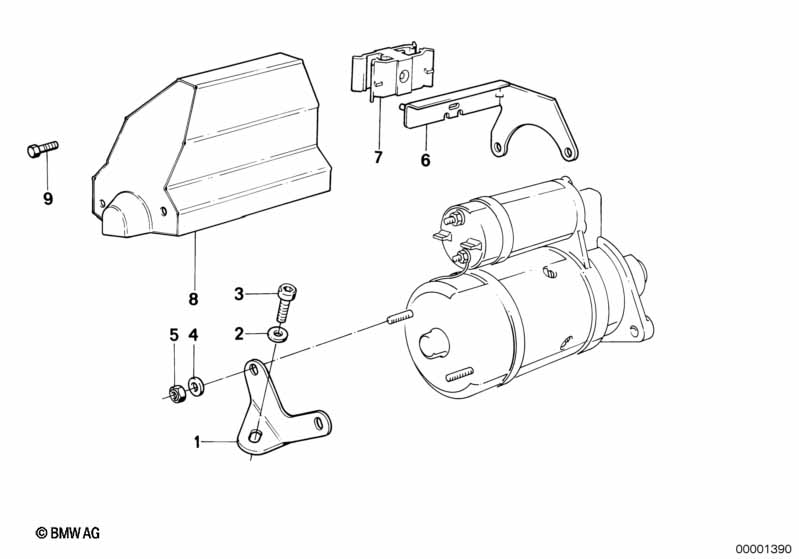

This Upevňovací díly startéru technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Opěrný plech | 1 | 12411736100 | $7.02 | Shop at ECS Tuning | |||||
| 02 | Podložka | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 03 | Šestihranný šroub | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 04 | Podložka | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 05 | Šestihranná matice s podložkou | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Uchycení | 1 | 12421718179 | $22.32 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Uchycení | 1 | 12421718201 | $2.82 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Tepelný ochranný kryt | 1 | 12411729361 | $54.70 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub | M6X10 | 2 | 07119900054 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub s podložkou | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750iLS Upevňovací díly startéru?
- This technical diagram illustrates the Upevňovací díly startéru within the Elektrika motoru group for the 7 Series E32 750iLS produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Opěrný plech (Part #12411736100).
- Which models use the hardware listed in this Upevňovací díly startéru?
- The hardware and components featured in the Upevňovací díly startéru are specific to the 7 Series E32 750iLS produced during 1994. These technical specifications ensure that parts like the Opěrný plech (12411736100) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Upevňovací díly startéru assembly?
- Each item in the Upevňovací díly startéru corresponds to the numbered list below the illustration. For the 7 Series E32 750iLS, you can identify the Opěrný plech by locating its position on the schematic, which then links to the official BMW part number 12411736100 for the Elektrika motoru section.
