Kabelový svazek upevňovací díly for BMW 7 Series E23 728i (1986)

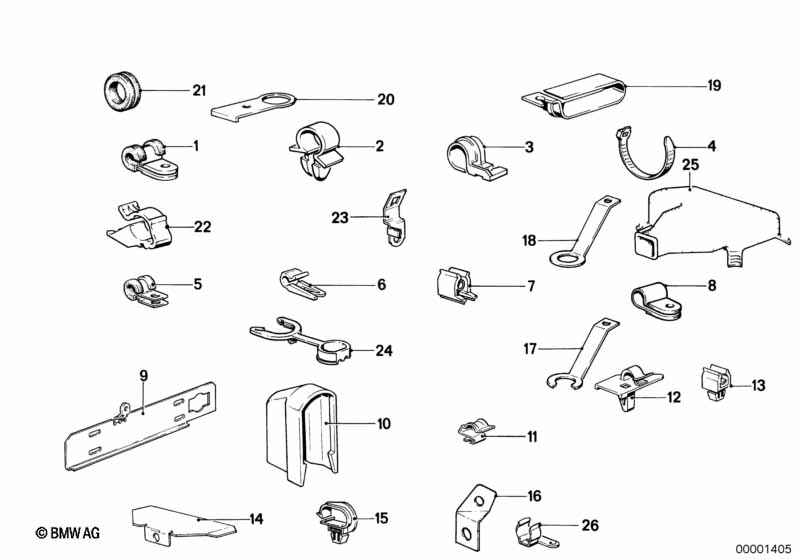

This Kabelový svazek upevňovací díly technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spona | D=10/6,4 | 1 | 12141305028 | $1.58 | Shop at ECS Tuning | ||||
| 01 | Spona | D=13/6,4 | 2 | 12427840405 | $1.52 | Shop at ECS Tuning | ||||
| 01 | Spona | D=16/6,4 | 2 | 12427840406 | $1.52 | Shop at ECS Tuning | ||||
| 01 | Spona | D=23/6,4 | 1 | 12521270936 | $1.77 | Shop at ECS Tuning | ||||
| 01 | Spona | D=16/8,4 | 1 | 12521271695 | $2.50 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Spona | D=13/8,4 | 1 | 61131356639 | $2.83 | Shop at ECS Tuning | ||||
| 01 | Spona | D=22/6,4 | 1 | 64531357128 | $1.91 | Shop at ECS Tuning | ||||
| 02 | Kabelové držáky | D=16,8MM | 1 | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
| 02 | Kabelové držáky | D=12,8MM | 2 | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 02 | Držák vedení | D=10,8MM | 3 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 03 | Spona | 12-16MM | X | 21521119300 | $0.60 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Kabelová spojka | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Spona | D=6/6,3 | 1 | 61131363443 | $4.63 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Uchycení | D=10MM | X | 61131362825 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Kabelová svorka | D=6MM | 1 | 63121364431 | $0.93 | Shop at ECS Tuning | ||||
| 07 | Držák větrací potrubí | X | 16131177583 | $1.08 | Shop at ECS Tuning | |||||
| 08 | Spona | D=8/6,4 | 1 | 11141274032 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Přídržná lišta | 1 | 12521270953 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Ochranné víčko | 1 | 61131355159 | $1.41 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Svorka | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| 11 | Kabelová svorka | D=4,5MM | 1 | 61131353865 | $0.42 | Shop at ECS Tuning | ||||
| 12 | Kabelové držáky | D=9MM | 1 | 61131355190 | $0.77 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Kabelové držáky | D=10MM | 1 | 61131269273 | $1.97 | Shop at ECS Tuning | ||||
| 15 | Kabelové držáky | 13,5X23,5MM | 2 | 61131269331 | $1.22 | UKONČENO | Shop at ECS Tuning | |||
| 19 | Kabelové držáky | 1 | 61131269349 | $0.84 | Shop at ECS Tuning | |||||
| 20 | Držák | 1 | 61131354070 | $1.13 | Shop at ECS Tuning | |||||
| 21 | Tlumicí kroužek | 18X23X9 | 1 | 12521276010 | $1.77 | Shop at ECS Tuning | ||||
| 21 | Tlumicí kroužek | 18X28X6 | 1 | 61611353754 | $1.18 | Shop at ECS Tuning | ||||
| 22 | Kabelové držáky | D=13-16MM | 2 | 61131368622 | $4.23 | Shop at ECS Tuning | ||||
| 23 | Držák | 1 | 12521276198 | UKONČENO | Shop at ECS Tuning | |||||
| 24 | Víko | 1 | 12521286052 | $1.35 | Shop at ECS Tuning | |||||
| 25 | Ochranné víčko | 1 | 12521279703 | $10.07 | UKONČENO | Shop at ECS Tuning | ||||
| 26 | Kabelové držáky | 2 | 12121306815 | UKONČENO | Shop at ECS Tuning |
