Relé motor/skříň řídicí jednotky for BMW 5 Series E34 535i (1993)

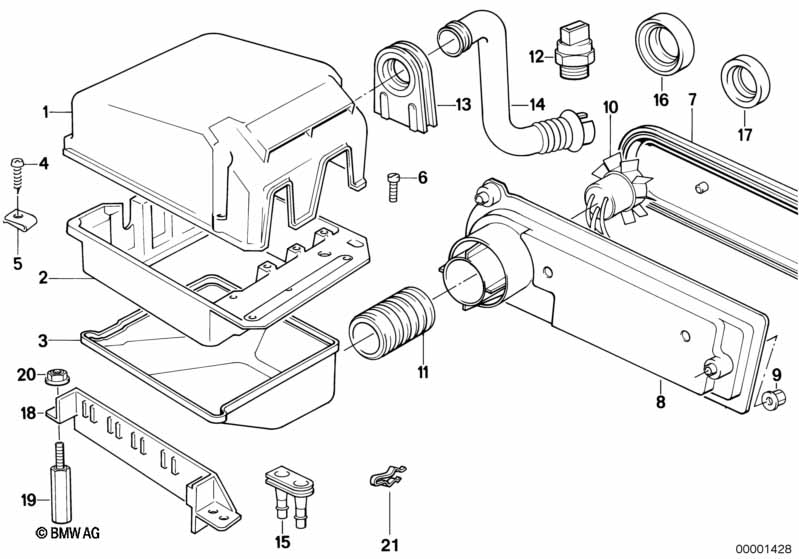

This Relé motor/skříň řídicí jednotky technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Víko | 1 | 12901716920 | $48.41 | Shop at ECS Tuning | |||||
| 02 | Střední díl | 1 | 12901402189 | $70.87 | Shop at ECS Tuning | |||||
| 03 | Spodní díl | 1 | 06/1989 | 12901730359 | $27.44 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Samořezný šroub s čočkovou hlavou | ST4,8X16-Z1 | 4 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Zástrčná matice | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 06 | Šroub s čočkovitou hlavou | M6X16 | 4 | 07119906423 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Sací potrubí horní díl | 1 | 06/1989 | 12901713435 | $17.05 | Shop at ECS Tuning | ||||
| 07 | Sací potrubí | 1 | 06/1989 | 12901713436 | Shop at ECS Tuning | |||||
| 08 | Sací potrubí spodní díl | 1 | 12901713433 | $16.08 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Sací potrubí horní díl | 1 | 12901713435 | $17.05 | Shop at ECS Tuning | |||||
| 08 | Sací potrubí spodní díl | 1 | 06/1989 | 12901713433 | $16.08 | Shop at ECS Tuning | ||||
| 09 | Plastová matice čep s hrubým závitem | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Ventilátor | 1 | 12901720343 | $145.46 | Shop at ECS Tuning | |||||
| 11 | Pryžové ložisko | 1 | 12901718979 | $2.56 | Shop at ECS Tuning | |||||
| 12 | Teplotní spínač | 44 CEL | 1 | 12631717443 | $31.13 | Shop at ECS Tuning | ||||
| 13 | Průchodka | 1 | 12901717087 | $7.82 | Shop at ECS Tuning | |||||
| 14 | Odvzdušňovací hadice | 1 | 12901747478 | $9.12 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Průchodka | 1 | 12521711206 | $1.51 | UKONČENO | Shop at ECS Tuning | ||||
| 16 | Průchodka | E-BOX | 1 | 12901717046 | $2.82 | UKONČENO | Shop at ECS Tuning | |||
| 17 | Průchodka | 1 | 12901717047 | $2.82 | UKONČENO | Shop at ECS Tuning | ||||
| 18 | Držák relé | 1 | 12631711257 | $9.32 | UKONČENO | Shop at ECS Tuning | ||||
| 19 | Distanční vložka | 2 | 12632241474 | $3.85 | UKONČENO | Shop at ECS Tuning | ||||
| 20 | Šestihranná matice s podložkou | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 20 | Matice | M6 | 2 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 21 | Pružina | 4 | 12901731968 | $1.43 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 535i Relé motor/skříň řídicí jednotky?
- This technical diagram illustrates the Relé motor/skříň řídicí jednotky within the Elektrika motoru group for the 5 Series E34 535i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Víko (Part #12901716920).
- Which models use the hardware listed in this Relé motor/skříň řídicí jednotky?
- The hardware and components featured in the Relé motor/skříň řídicí jednotky are specific to the 5 Series E34 535i produced during 1993. These technical specifications ensure that parts like the Víko (12901716920) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relé motor/skříň řídicí jednotky assembly?
- Each item in the Relé motor/skříň řídicí jednotky corresponds to the numbered list below the illustration. For the 5 Series E34 535i, you can identify the Víko by locating its position on the schematic, which then links to the official BMW part number 12901716920 for the Elektrika motoru section.
