Kabelový svazek upevňovací díly for BMW 5 Series E34 520i (1990)

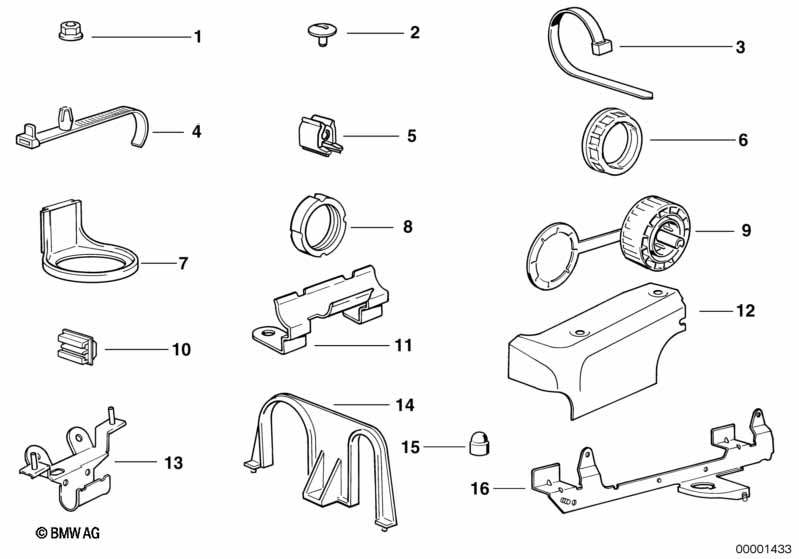

This Kabelový svazek upevňovací díly technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Přírubová matice | M5 | X | 07141732625 | $0.14 | Shop at ECS Tuning | ||||
| 01 | Matice | M6 | X | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 01 | Šestihranná matice | M8 | X | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 02 | Tlačítko | X | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 03 | Kabelová spojka | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Kabelová spojka | 80MM | X | 12521266650 | $0.57 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Držák větrací potrubí | 1 | 16131177583 | $1.08 | Shop at ECS Tuning | |||||
| 06 | Pojistný kroužek | 7-POL | 1 | 12521718127 | $1.77 | Shop at ECS Tuning | ||||
| 07 | Držák diagnostická zástrčka | DIAGNOSE | 1 | 09/1990 | 12521714344 | $2.82 | Shop at ECS Tuning | |||
| 08 | Matice | DIAGNOSE | 1 | 12521711219 | $4.02 | Shop at ECS Tuning | ||||
| 09 | Víko diagnostická zástrčka | 1 | 12521724690 | $15.78 | Shop at ECS Tuning | |||||
| 10 | Držák zástrčka černá | 1 | 61131378944 | $0.87 | Shop at ECS Tuning | |||||
| 11 | Držák kabelový svazek | 1 | 12521718035 | $1.51 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Kryt pravý | 1 | 03/1988 | 12521724120 | $9.63 | Shop at ECS Tuning | ||||
| 13 | Uchycení | 1 | 12521724590 | $11.90 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Držák kabelový svazek | 1 | 12521711244 | $1.68 | Shop at ECS Tuning | |||||
| 15 | Ochranné víčko B+ | M6 | 1 | 46621453668 | $0.60 | Shop at ECS Tuning | ||||
| 16 | Držák skříň konektoru | 1 | 12521719724 | $12.00 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
