Kabel akumulátoru for BMW 8 Series E31 850Ci (1994)

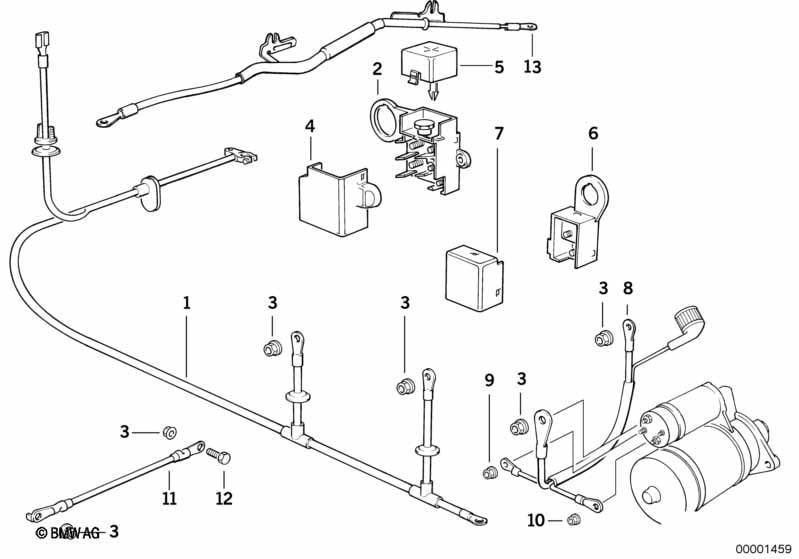

This Kabel akumulátoru technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabel akumulátoru plus | 1 | 12421724378 | $276.98 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Základna B+ | 1 | 12521724261 | $64.63 | Shop at ECS Tuning | |||||
| 03 | Šestihranná matice | M8 | X | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 04 | Kryt | 1 | 12522446797 | Shop at ECS Tuning | ||||||
| 05 | Víko | 1 | 12521724375 | $5.03 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Příložka | 1 | 12521724197 | $0.68 | Shop at ECS Tuning | |||||
| 06 | Základna B+ | 1 | 12521724631 | $15.78 | Shop at ECS Tuning | |||||
| 07 | Kryt | 1 | 12521724634 | $3.47 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Kabel startér | 1 | 09/1992 | 12421737735 | $100.83 | Shop at ECS Tuning | ||||
| 09 | Matice | M6 | 2 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 10 | Přírubová matice | M5 | 2 | 07141732625 | $0.14 | Shop at ECS Tuning | ||||
| 11 | Kostřicí kabel | L=380MM | 1 | 12421737755 | $19.50 | Shop at ECS Tuning | ||||
| 12 | Šestihranný šroub | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 13 | Kabel alternátor-základna B+ | 1 | 12511732762 | $330.89 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
