Alternátor jednotlivé díly 115A for BMW 5 Series E34 520i (1990)

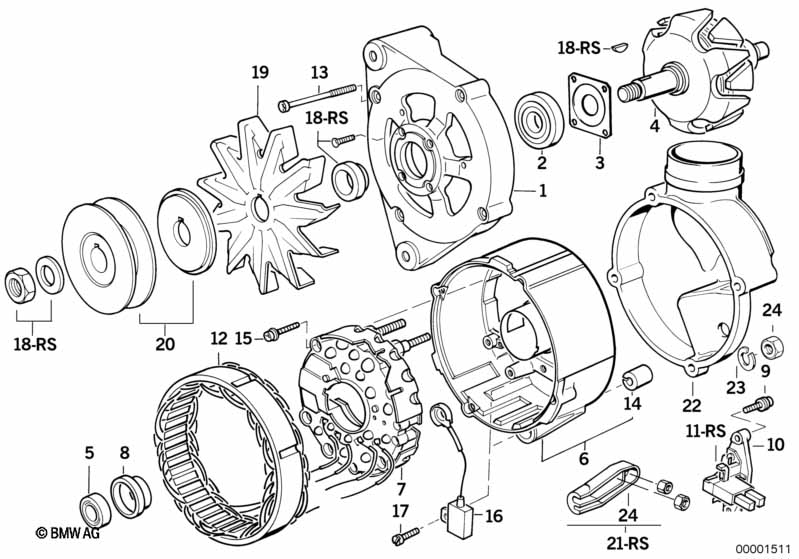

This Alternátor jednotlivé díly 115A technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | vhodné jen pro alternátor Bosch Typ Nr. 0 120 468 043 BMW Nr. 12 31 1 720 591 12 31 1 722 568 |
|||||||||
| vhodné pouze pro | ||||||||||
| -- | Alternátor | 115A | X | 12311720591 | UKONČENO | Shop at ECS Tuning | ||||
| -- | RP REMAN alternátor | 115A | X | 12311722568 | $547.38 | Shop at ECS Tuning | ||||
| 01 | Hnací ložisko | 1 | 12311735311 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Radiální kuličkové ložisko | 47X17X14 | 1 | 12311722979 | $33.90 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Přídržná deska | 1 | 12311727740 | $7.13 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Rotor | 1 | 12311735312 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Radiální kuličkové ložisko | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 06 | Ložisko kluzného kroužku | 1 | 12311735314 | $65.57 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Diodová deska | 1 | 12311735315 | $195.30 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Kroužek | 1 | 12311735305 | $2.73 | Shop at ECS Tuning | |||||
| 09 | Šroub s válcovou hlavou | 2 | 12311747251 | $0.58 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Regulátor | 1 | 12311726022 | $124.68 | Shop at ECS Tuning | |||||
| 11 | Sada uhlíkových kartáčů | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 12 | Kruhové vinutí | 1 | 12311735310 | $245.52 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Šroub s válcovou hlavou | 4 | 12311735316 | UKONČENO | Shop at ECS Tuning | |||||
| 14 | Pouzdro | 1 | 12311727761 | $11.30 | Shop at ECS Tuning | |||||
| 15 | Šroub | 6 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 16 | Odrušovací kondenzátor alternátor | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
| 17 | Šroub s válcovou hlavou | AM5X10 | 1 | 07119919412 | UKONČENO | Shop at ECS Tuning | ||||
| 18 | Opravná sada rotor | 1 | 12311727762 | $18.57 | UKONČENO | Shop at ECS Tuning | ||||
| 19 | Kolo ventilátoru | 1 | 12311735306 | $18.03 | Shop at ECS Tuning | |||||
| 20 | Řemenice | D=66MM | 1 | 12311288238 | $31.13 | Shop at ECS Tuning | ||||
| 21 | Sada montážní díly | B+/D+ | 1 | 12311722985 | $19.10 | Shop at ECS Tuning | ||||
| 22 | Připojovací příruba | 1 | 12311730995 | $23.78 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
