Alternátor jednotlivé díly 140A for BMW 5 Series E34 525i (1995)

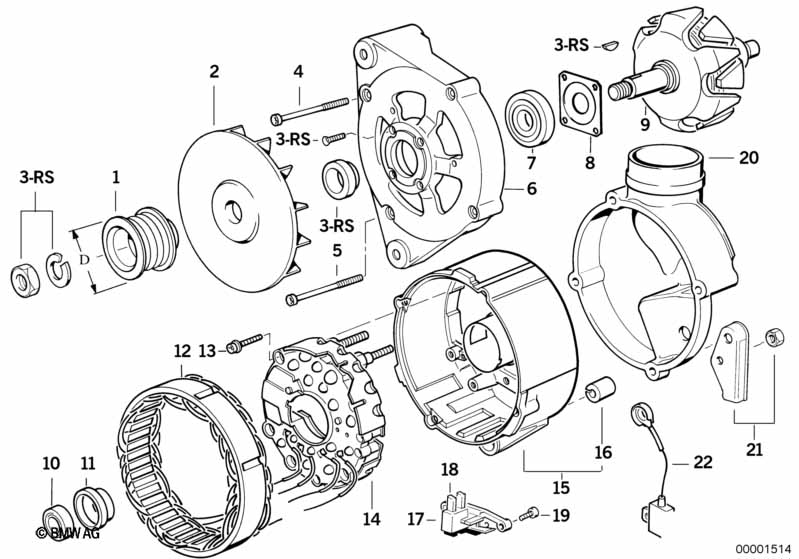

This Alternátor jednotlivé díly 140A technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | vhodné jen pro alternátor Bosch Typ Nr. 0 120 468 103 BMW Nr. 12 31 1 738 088 / 089 |
|||||||||
| vhodné pouze pro | ||||||||||
| -- | Alternátor | 140A | X | 12311738088 | Shop at ECS Tuning | |||||
| -- | Výměna alternátor | 140A | X | 12311738089 | $443.05 | Shop at ECS Tuning | ||||
| 01 | Řemenice | D=61,8MM | 1 | 12311738067 | $56.08 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Kolo ventilátoru | BOSCH/D=154MM | 1 | 12311730496 | $37.51 | Shop at ECS Tuning | ||||
| 03 | Opravná sada rotor | 1 | 12311727762 | $18.57 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Šroub s čočkovitou hlavou | 3 | 12311738148 | $2.82 | Shop at ECS Tuning | |||||
| 05 | Šroub s čočkovitou hlavou | 1 | 12311738101 | $2.77 | Shop at ECS Tuning | |||||
| 06 | Hnací ložisko | 1 | 12311738106 | $69.19 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Radiální kuličkové ložisko | 52X17X17 | 1 | 12311747246 | $51.53 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Přídržná deska | 1 | 12311747247 | $3.35 | Shop at ECS Tuning | |||||
| 09 | Rotor | 1 | 12311738107 | $198.65 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 10 | Radiální kuličkové ložisko | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 11 | Kroužek | 1 | 12311735305 | $2.73 | Shop at ECS Tuning | |||||
| 12 | Kruhové vinutí | 1 | 12311738105 | $212.04 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Šroub | 7 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 14 | Diodová deska | 1 | 12311738109 | $260.03 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 15 | Ložisko kluzného kroužku | 1 | 12311738108 | $57.07 | UKONČENO | Shop at ECS Tuning | ||||
| 16 | Pouzdro | 1 | 12311738103 | $12.08 | UKONČENO | Shop at ECS Tuning | ||||
| 17 | Regulátor | 1 | 12311726022 | $124.68 | Shop at ECS Tuning | |||||
| 18 | Sada uhlíkových kartáčů | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 19 | Šroub s válcovou hlavou | 2 | 12311747251 | $0.58 | UKONČENO | Shop at ECS Tuning | ||||
| 20 | Sací hrdlo | 1 | 12311730143 | $24.27 | UKONČENO | Shop at ECS Tuning | ||||
| 21 | Sada montážní díly | B+/D* | 1 | 12311747252 | $9.57 | Shop at ECS Tuning | ||||
| 22 | Odrušovací kondenzátor alternátor | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
