Alternátor jednotlivé díly 80A for BMW 5 Series E34 520i (1996)

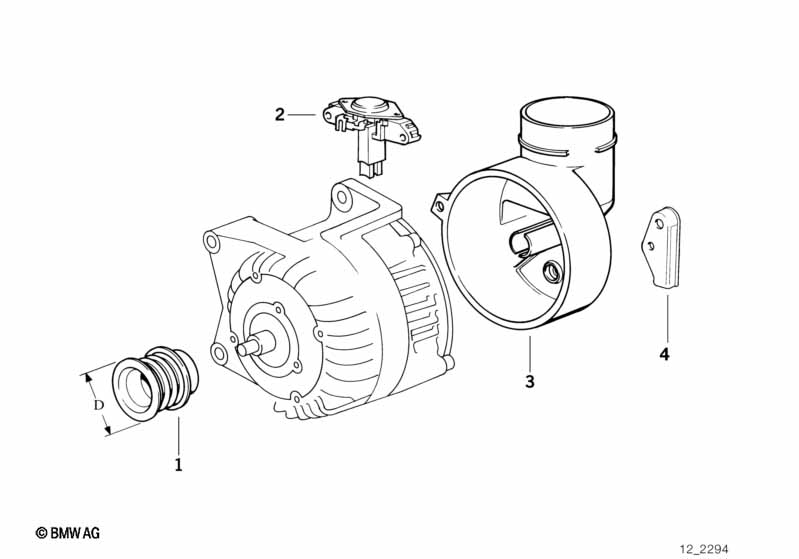

This Alternátor jednotlivé díly 80A technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | vhodné jen pro alternátor Bosch Typ Nr. 0 120 485 048 BMW Nr. 12 31 1 730 580 / 584 |
|||||||||
| vhodné pouze pro | ||||||||||
| -- | Kompaktní alternátor | 80A | X | 12311730580 | Shop at ECS Tuning | |||||
| -- | Výměna kompaktní alternátor | 80A | X | 12311730584 | Shop at ECS Tuning | |||||
| 01 | Řemenice alternátor | D=55MM | 1 | 12311432988 | $32.10 | Shop at ECS Tuning | ||||
| 02 | Regulátor | BOSCH | 1 | 12311747920 | $157.93 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Sací hrdlo | 1 | 12311730583 | $18.45 | Shop at ECS Tuning | |||||
| 04 | Izolační kus | 1 | 12311738358 | $15.58 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
