Alternátor jednotlivé díly 80A for BMW 3 Series E30 320i (1990)
This Alternátor jednotlivé díly 80A technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | vhodné jen pro alternátor Bosch Typ Nr. 0 120 469 759 |
|||||||||
| vhodné pouze pro | ||||||||||
| -- | Alternátor | 80A | X | 12311706056 | UKONČENO | Shop at ECS Tuning | ||||
| -- | Výměna alternátor | 80A | X | 12311711203 | $251.51 | Shop at ECS Tuning | ||||
| 01 | Hnací ložisko | 1 | 12311716179 | $91.23 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Radiální kuličkové ložisko | 47X17X14 | 1 | 12311722979 | $33.90 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Přídržná deska | 1 | 12311727740 | $7.13 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Rotor | 1 | 12311288423 | $382.79 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Radiální kuličkové ložisko | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 06 | Ložisko kluzného kroužku | 1 | 12311716180 | $75.61 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Diodová deska | LIMA | 1 | 12311288457 | $205.34 | Shop at ECS Tuning | ||||
| 08 | Kroužek | 1 | 12311715174 | $3.68 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Šroub s válcovou hlavou | 2 | 12311747251 | $0.58 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Regulátor | 1 | 12311726022 | $124.68 | Shop at ECS Tuning | |||||
| 11 | Sada uhlíkových kartáčů | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 12 | Kruhové vinutí | 1 | 12311727758 | $309.13 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Šroub s válcovou hlavou | 3 | 12311727760 | $3.53 | Shop at ECS Tuning | |||||
| 13 | Šroub s čočkovitou hlavou | 1 | 12311738099 | $1.80 | Shop at ECS Tuning | |||||
| 14 | Šroub | 6 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 15 | Odrušovací kondenzátor alternátor | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
| 16 | Šroub s válcovou hlavou | 1 | 12311722966 | $0.70 | Shop at ECS Tuning | |||||
| 17 | Opravná sada rotor | 1 | 12311727762 | $18.57 | UKONČENO | Shop at ECS Tuning | ||||
| 18 | Kolo ventilátoru | 1 | 12311735306 | $18.03 | Shop at ECS Tuning | |||||
| 19 | Řemenice | D=66MM | 1 | 12311288238 | $31.13 | Shop at ECS Tuning | ||||
| 20 | Šestihranná matice | M16X1,5-04-ZNS | 1 | 07119901307 | $1.80 | Shop at ECS Tuning | ||||
| 21 | Pružná podložka | B16 | 1 | 07119932162 | $0.24 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Alternátor jednotlivé díly 80A?

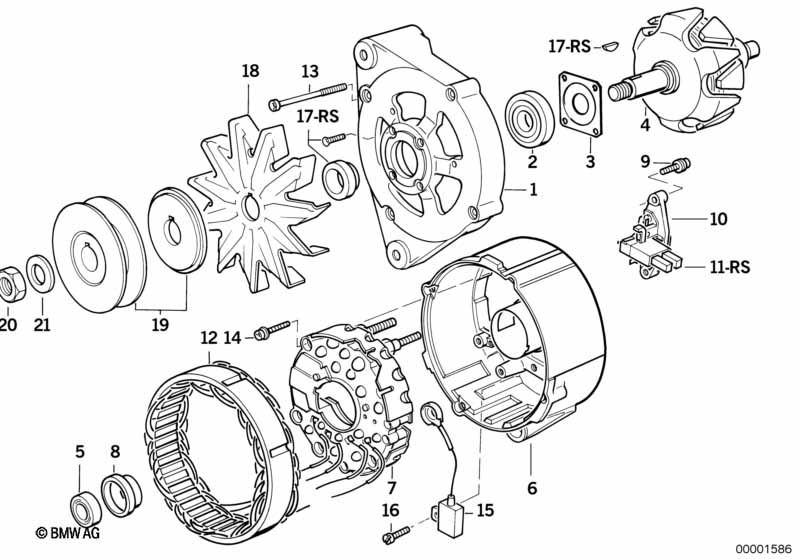

- This technical diagram illustrates the Alternátor jednotlivé díly 80A within the Elektrika motoru group for the 3 Series E30 320i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Alternátor (Part #12311706056).
- Which models use the hardware listed in this Alternátor jednotlivé díly 80A?
- The hardware and components featured in the Alternátor jednotlivé díly 80A are specific to the 3 Series E30 320i produced during 1990. These technical specifications ensure that parts like the Alternátor (12311706056) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternátor jednotlivé díly 80A assembly?
- Each item in the Alternátor jednotlivé díly 80A corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Alternátor by locating its position on the schematic, which then links to the official BMW part number 12311706056 for the Elektrika motoru section.
