Kabel akumulátoru for BMW 7 Series E38 735i (2001)

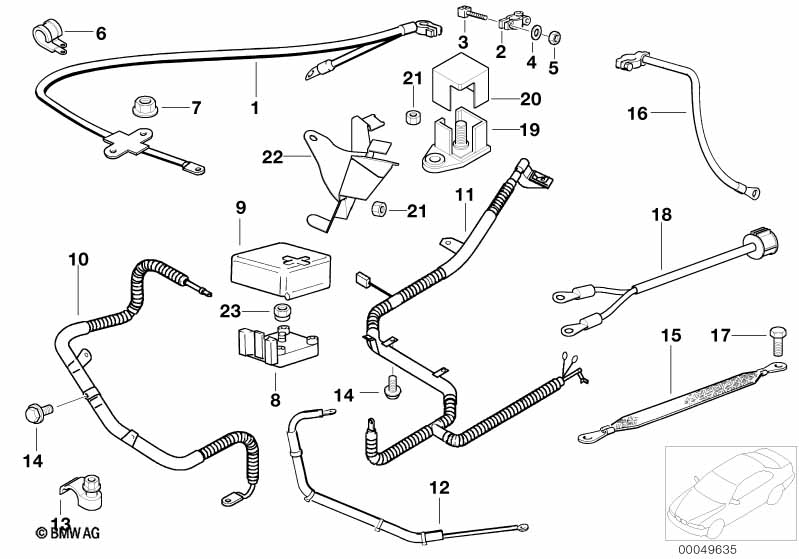

This Kabel akumulátoru technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabel akumulátoru plus | 1 | 09/1997 | 12421436897 | $276.98 | +core | Shop at ECS Tuning | |||
| 02 | Opravná sada bezpečnostní svorka baterie | 70 QMM | 1 | 09/1997 | 12421733938 | $381.44 | Shop at ECS Tuning | |||
| 06 | Kabelové držáky | 4 | 12521741343 | $0.68 | Shop at ECS Tuning | |||||
| 07 | Plastová matice čep s hrubým závitem | M6 | 6 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Základna B+ | 1 | 12521702102 | $12.12 | Shop at ECS Tuning | |||||
| 09 | Víko základna B+ | 1 | 12521702103 | $2.22 | Shop at ECS Tuning | |||||
| 10 | Kabel podp. bodu startéru alternátoru B+ | 1 | 09/1998 | 12421736834 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Kabel podp. bodu startéru alternátoru B+ | 1 | 12421741802 | Shop at ECS Tuning | ||||||
| 12 | Kabel alternátor-základna B+ | 1 | 12421741944 | $19.50 | Shop at ECS Tuning | |||||
| 13 | Kabelové držáky | D=16,7MM | 2 | 61131369668 | $0.35 | Shop at ECS Tuning | ||||
| 15 | Kostřicí kabel | L=380MM | 1 | 12421737755 | $19.50 | Shop at ECS Tuning | ||||
| 15 | Kostřicí kabel | L=270MM | 1 | 12421742198 | $19.50 | UKONČENO | Shop at ECS Tuning | |||
| 16 | Kabel akumulátoru minus | 1 | 12421436907 | $28.24 | +core | Shop at ECS Tuning | ||||
| 17 | Šestihranný šroub | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 18 | Kabel alternátor-spouštěč | 1 | 12427504737 | $22.92 | Shop at ECS Tuning | |||||
| 19 | Spojovací bod nosník přední nápravy | 1 | 12521440146 | $9.32 | Shop at ECS Tuning | |||||
| 20 | Kryt | 1 | 12521435081 | $1.97 | Shop at ECS Tuning | |||||
| 21 | Šestihranná matice s podložkou | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 22 | Uchycení | 1 | 12422248778 | $39.73 | UKONČENO, +core | Shop at ECS Tuning | ||||
| 23 | Šestihranná matice kostřicí bod | 1 | 12521702100 | $1.95 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
