Spouštěč for BMW R45-R65LS..78-85 R65LS (1983)

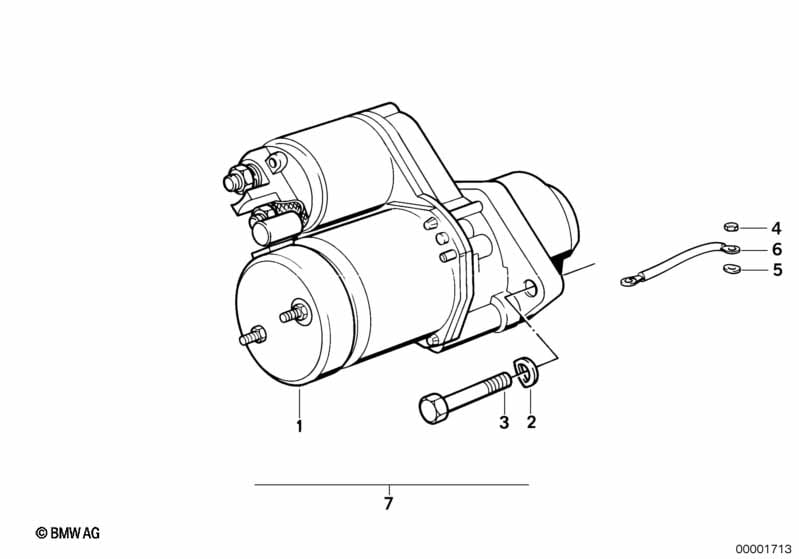

This Spouštěč technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spouštěč | 1 | 12419062425 | $413.23 | +core | Shop at ECS Tuning | ||||
| 02 | Pružná podložka | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub | M8X45-8.8-ZNS3 | 2 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice | M8-8-ZNS3 | 1 | 06/1997 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 04 | Šestihranná matice | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Pružný kroužek | B8 | 1 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Kabel akumulátoru plus | 1 | 61121243473 | $48.45 | +core | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65LS Spouštěč?
- This technical diagram illustrates the Spouštěč within the Elektrická výstroj motoru group for the R45-R65LS..78-85 R65LS produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Spouštěč (Part #12419062425).
- Which models use the hardware listed in this Spouštěč?
- The hardware and components featured in the Spouštěč are specific to the R45-R65LS..78-85 R65LS produced during 1983. These technical specifications ensure that parts like the Spouštěč (12419062425) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Spouštěč assembly?
- Each item in the Spouštěč corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65LS, you can identify the Spouštěč by locating its position on the schematic, which then links to the official BMW part number 12419062425 for the Elektrická výstroj motoru section.
