Alternátor jednotlivé díly for BMW 1502-2002tii 1602 (1971)

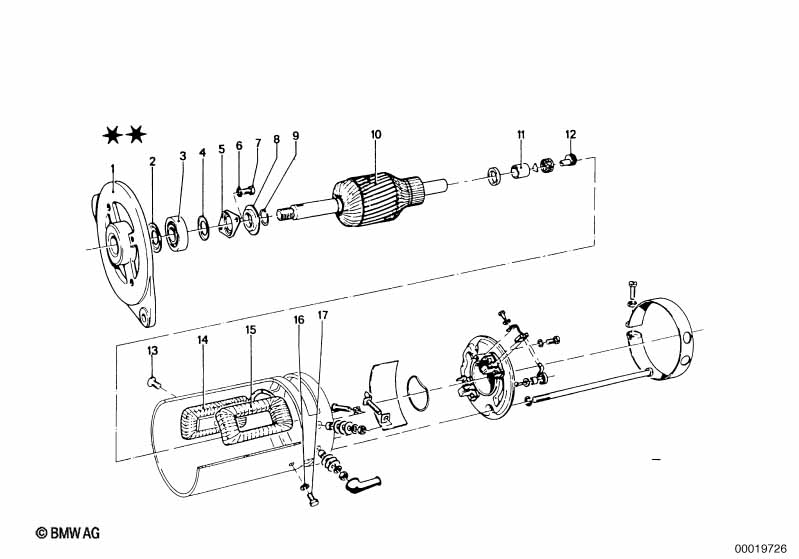

This Alternátor jednotlivé díly technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ložisko | 1 | 12318602114 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Okno | 1 | 12318602126 | UKONČENO | Shop at ECS Tuning | |||||
| 03 | Radiální kuličkové ložisko | 1 | 07119981210 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Okno | 1 | 12318602122 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Sada pružný kroužek 50 | B4 | 5 | 07509063158 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Kotva | 6 VOLT | 1 | 12318602116 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Pouzdro | 1 | 12318602150 | UKONČENO | Shop at ECS Tuning | |||||
| 12 | Maznice | 1 | 12318630103 | UKONČENO | Shop at ECS Tuning | |||||
| 14 | Budicí vinutí | 6 VOLT | 1 | 12318602100 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Budicí vinutí | 6 VOLT | 1 | 12318602101 | UKONČENO | Shop at ECS Tuning | ||||
| 17 | Sada šroub 20 | M5X10 | 1 | 07509064069 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
