Startér jednotlivé díly for BMW 2500-3.3Li 2800 (1970)

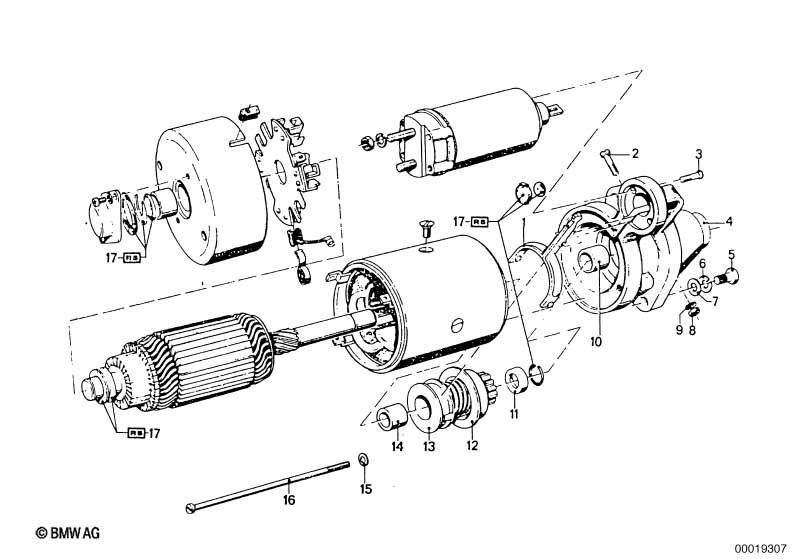

This Startér jednotlivé díly technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Šroub s válcovou hlavou | 1 | 08/1968 | 02/1977 | 12418620114 | $1.21 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Zápustný šroub | 2 | 08/1968 | 02/1977 | 12418620158 | $0.77 | UKONČENO | Shop at ECS Tuning | ||
| 04 | Hnací ložisko | 1 | 08/1968 | 02/1977 | 12418620108 | $99.88 | UKONČENO | Shop at ECS Tuning | ||
| 05 | Šestihranný šroub | M10X25-8.8 ZN | 2 | 07119913834 | $0.71 | Shop at ECS Tuning | ||||
| 06 | Pružná podložka | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 08 | Šestihranná matice | M-6-04-2-ZNS | 1 | 02/1977 | 07119922859 | $0.11 | Shop at ECS Tuning | |||
| 08 | Šestihranná matice | M6-8-ZNS3 | 1 | 02/1977 | 07119904030 | $0.38 | Shop at ECS Tuning | |||
| 08 | Šestihranná matice | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Pružný kroužek | B6 | 1 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Ložiskové pouzdro | 1 | 12411722917 | $3.74 | Shop at ECS Tuning | |||||
| 11 | Dorazový kroužek | 1 | 12411722915 | $3.63 | Shop at ECS Tuning | |||||
| 12 | Převodovka spouštěče | 1 | 08/1968 | 02/1977 | 12411350796 | $66.12 | Shop at ECS Tuning | |||
| 13 | Vodicí kroužek | 1 | 08/1968 | 02/1977 | 12418620159 | $5.19 | UKONČENO | Shop at ECS Tuning | ||
| 15 | Podložka | A6,4-ZNNIV SI | 2 | 08/1968 | 02/1977 | 07119904202 | Shop at ECS Tuning | |||
| 16 | Šroub s válcovou hlavou | 2 | 08/1968 | 02/1977 | 12411350279 | UKONČENO | Shop at ECS Tuning | |||
| 17 | Opravná sada startér | 1 | 12411352289 | $10.83 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
