Alternátor jednotlivé díly 55 A for BMW 2500-3.3Li 2800 (1971)

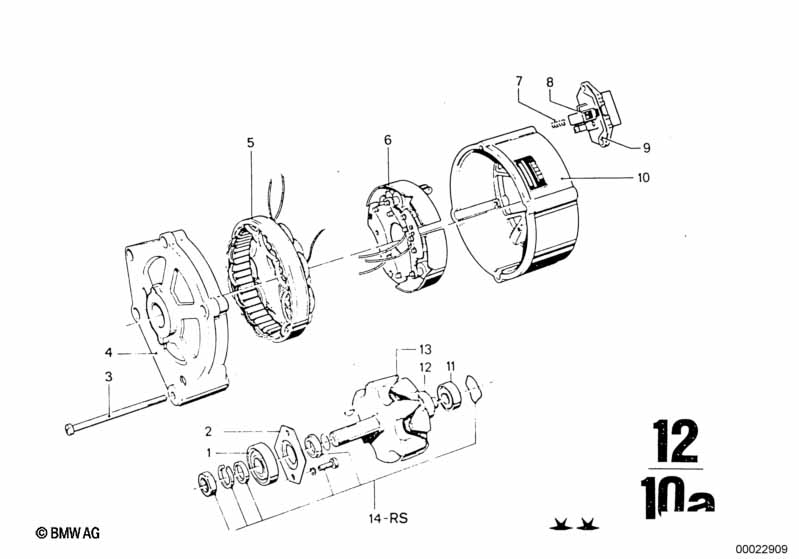

This Alternátor jednotlivé díly 55 A technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiální kuličkové ložisko | 40X17X12 | 1 | 12311714522 | $17.93 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Přídržná deska | 1 | 12311459279 | $1.12 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Šroub s válcovou hlavou | 4 | 12311354683 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Kruhové vinutí | 1 | 12311354676 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Diodová deska | 1 | 12311354682 | $75.61 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Tlačná pružina | 2 | 12311268412 | $0.35 | Shop at ECS Tuning | |||||
| 08 | Sada uhlíkových kartáčů | 1 | 12311354681 | $4.08 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Regulátor | BOSCH | 1 | 12311286073 | $63.58 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Ložisko kluzného kroužku | 1 | 12311359768 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Radiální kuličkové ložisko | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 12 | Kluzný kroužek | 1 | 12311354689 | UKONČENO | Shop at ECS Tuning | |||||
| 13 | Rotor | 1 | 12311358008 | UKONČENO | Shop at ECS Tuning | |||||
| 14 | Opravná sada rotor | 1 | 12311350332 | $14.45 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
