Kabel akumulátoru for BMW MINI R50 Cooper (2000)

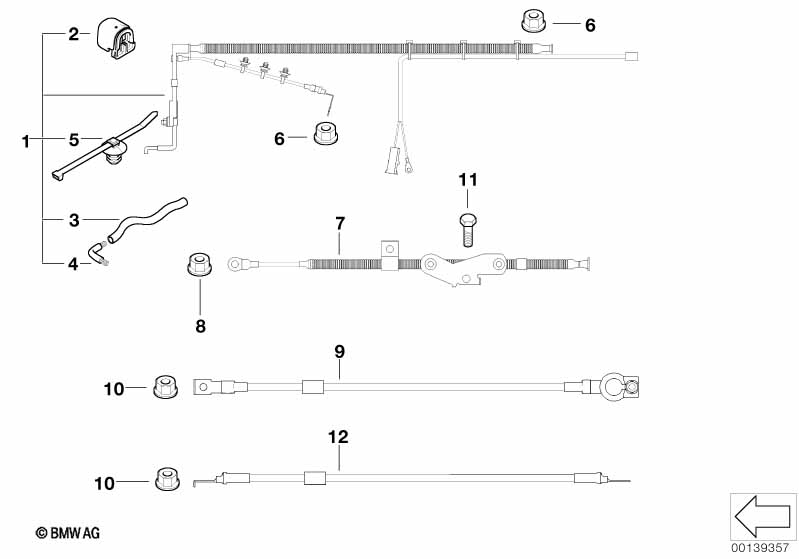

This Kabel akumulátoru technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabel akumulátoru plus | 1 | 03/2003 | 12427515197 | $123.73 | Shop at ECS Tuning | ||||
| 02 | Odnímatelný kryt | 1 | 03/2003 | 61136908696 | $3.53 | Shop at ECS Tuning | ||||
| 03 | Metrové zboží hadicové vedení | X | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| 04 | Připojovací koleno | 1 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
| 05 | Kabelový pásek s držákem | Ø=7,9 / L=150 | 3 | 61136915981 | $0.43 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub s podložkou | M8X16 | 2 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Kabel alternátor-spouštěč | VALEO 120A | 1 | 12427521450 | $50.13 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Klimatizace a Automatická klimatizace a Provedení pro země s teplým podnebím |
S530A=Ne S534A=Ne S823A=Ne |
|||||||||
| 07 | Kabel alternátor-spouštěč | DENSO 105A | 1 | 07/2004 | 12427515206 | $50.13 | Shop at ECS Tuning | |||
| Pro vozidla s Klimatizace nebo Automatická klimatizace nebo Provedení pro země s teplým podnebím |
S530A=Ano S534A=Ano S823A=Ano |
|||||||||
| 07 | Kabel alternátor-spouštěč | DENSO 105A | 1 | 01/2004 | 12427515206 | $50.13 | Shop at ECS Tuning | |||
| 08 | Šestihranná matice s podložkou | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Kabel akumulátoru minus | 1 | 12427515200 | $27.82 | Shop at ECS Tuning | |||||
| 10 | Šestihranná matice | M8-ZNS3 | 2 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Šestihranný šroub | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Kostřicí kabel | 1 | 12429805422 | Shop at ECS Tuning | ||||||
Notes
- Ukončeno = Díl se již nevyrábí.
