Alternátor upevňovací díly for BMW 7 Series E32 735iL (1992)

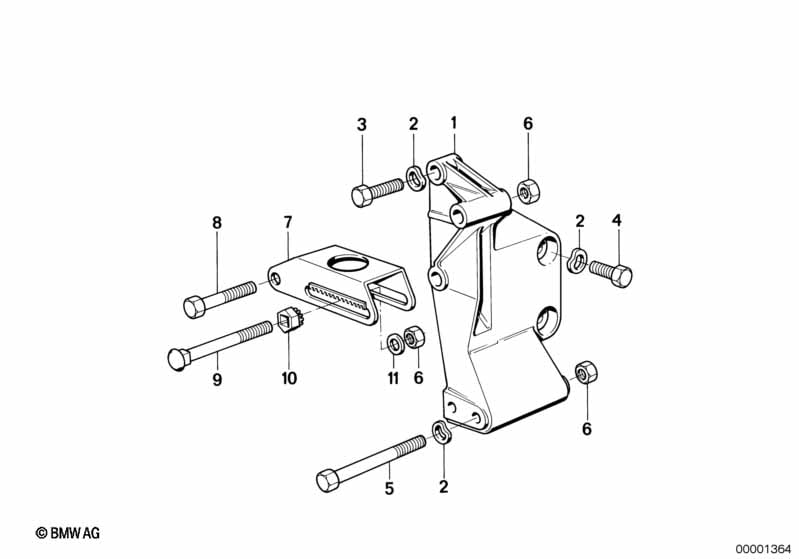

This Alternátor upevňovací díly technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Konzola uložení | 1 | 12311707194 | $47.37 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Pružná podložka | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
| 04 | Šestihranný šroub s podložkou | M8X22-Z3 | 2 | 07119915084 | $0.41 | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub | M8X130 | 1 | 07119912585 | $2.09 | Shop at ECS Tuning | ||||
| 06 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 3 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 07 | Upínací příložka | 1 | 12311714450 | $8.07 | Shop at ECS Tuning | |||||
| 08 | Šestihranný šroub | M8X65 | 1 | 07119903018 | Shop at ECS Tuning | |||||
| 09 | Šroub s plochou kulovou hlavou | M8X80 | 1 | 12311276516 | $2.40 | Shop at ECS Tuning | ||||
| 10 | Přítlačný kroužek | 1 | 12317677914 | $4.26 | Shop at ECS Tuning | |||||
| 11 | Podložka | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning |
