Alternátor jednotlivé díly 140A for BMW 7 Series E32 750i

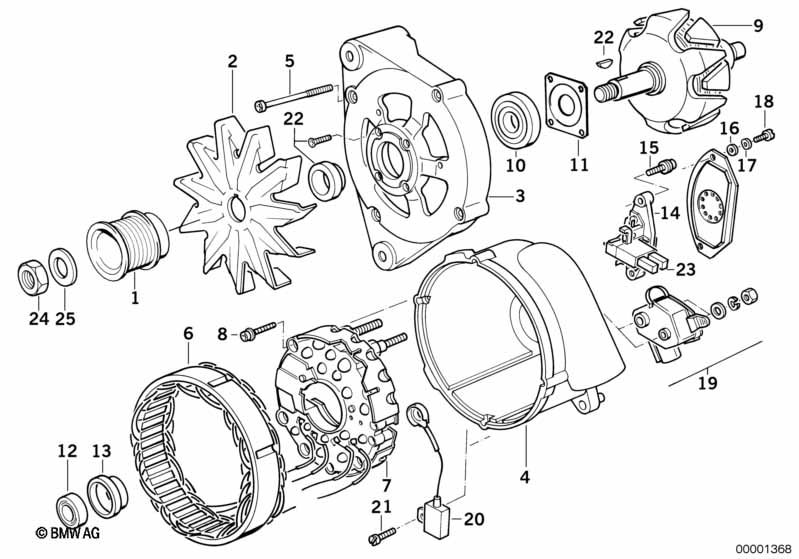

This Alternátor jednotlivé díly 140A technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | vhodné jen pro alternátor Bosch Typ Nr. 0 120 468 033 BMW Nr. 12 31 1 733 060 / 772 |
|||||||||
| 01 | Řemenice alternátor | SERVICE | 1 | 12311720368 | $39.65 | Shop at ECS Tuning | ||||
| 02 | Kolo ventilátoru | BOSCH/D=154MM | 1 | 12311730496 | $37.51 | Shop at ECS Tuning | ||||
| 03 | Hnací ložisko | 1 | 12311747245 | $77.56 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Ložisko kluzného kroužku | 1 | 12311747249 | $66.96 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Šroub s čočkovitou hlavou | 4 | 12311747481 | $2.18 | Shop at ECS Tuning | |||||
| 06 | Kruhové vinutí | 1 | 12311747244 | $224.32 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Diodová deska | 1 | 12311747250 | $250.67 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Šroub | 5 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 09 | Rotor | 1 | 12311747248 | $314.71 | Shop at ECS Tuning | |||||
| 10 | Radiální kuličkové ložisko | 52X17X17 | 1 | 12311747246 | $51.53 | UKONČENO | Shop at ECS Tuning | |||
| 11 | Přídržná deska | 1 | 12311747247 | $3.35 | Shop at ECS Tuning | |||||
| 12 | Radiální kuličkové ložisko | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 13 | Kroužek | 1 | 12311735305 | $2.73 | Shop at ECS Tuning | |||||
| 14 | Regulátor | BOSCH | 1 | 12311735742 | $124.68 | Shop at ECS Tuning | ||||
| 15 | Šroub s válcovou hlavou | 2 | 12311747251 | $0.58 | UKONČENO | Shop at ECS Tuning | ||||
| 16 | Okno | 9X4,3X0,8-200HV | 1 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 17 | Pružná podložka | B4 | 2 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 18 | Šroub | 2 | 52208181908 | $0.50 | Shop at ECS Tuning | |||||
| 19 | Sada montážní díly | B+/D* | 1 | 12311747252 | $9.57 | Shop at ECS Tuning | ||||
| 20 | Kondenzátor | 1 | 12311722989 | $29.30 | Shop at ECS Tuning | |||||
| 21 | Šroub s válcovou hlavou | AM5X10 | 1 | 07119919412 | UKONČENO | Shop at ECS Tuning | ||||
| 22 | Opravná sada rotor | 1 | 12311727762 | $18.57 | UKONČENO | Shop at ECS Tuning | ||||
| 23 | Sada uhlíkových kartáčů | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 24 | Šestihranná matice | M16X1,5-04-ZNS | 1 | 07119901307 | $1.80 | Shop at ECS Tuning | ||||
| 25 | Pružná podložka | B16 | 1 | 07119932162 | $0.24 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
