Spouštěč for BMW 3 Series E36 318i (1998)
This Spouštěč technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

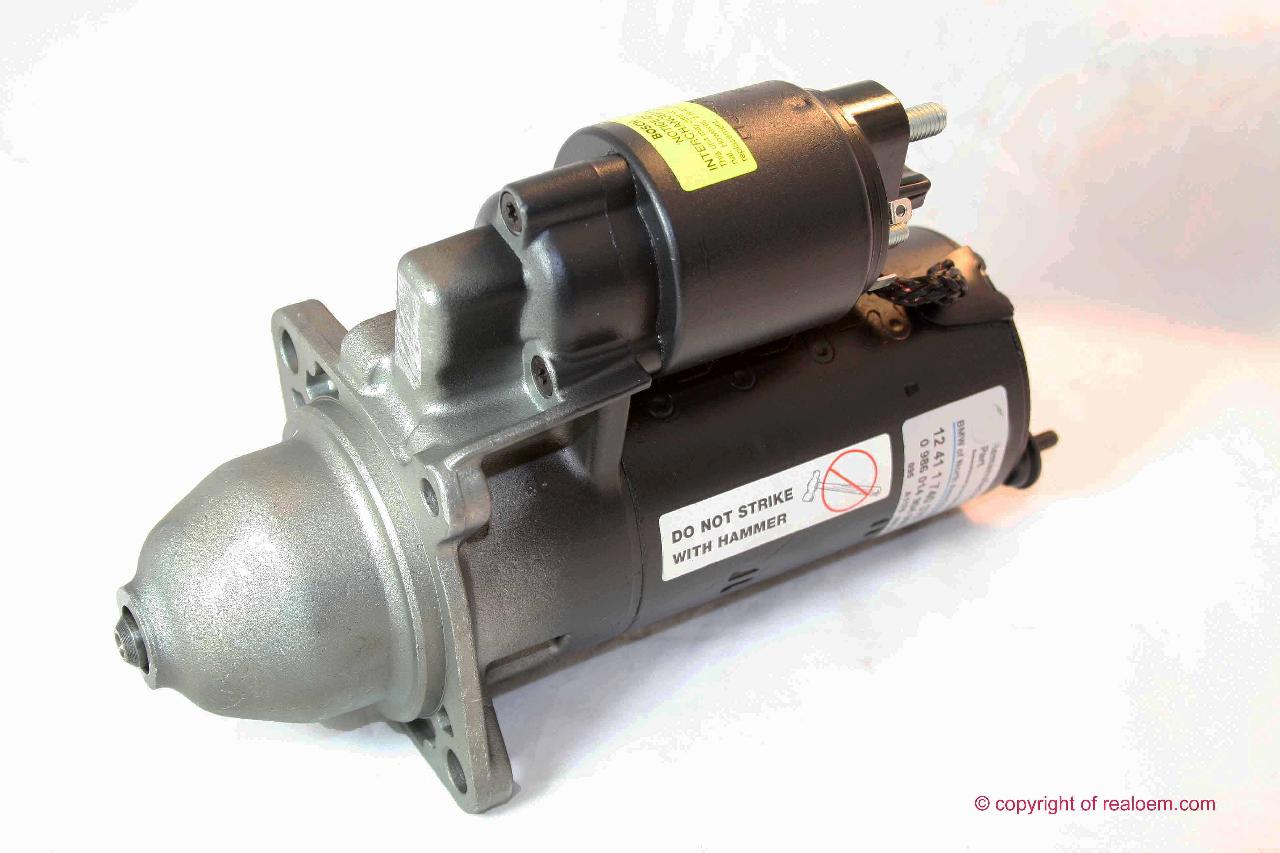

| 01 | RP REMAN startér | 1,4KW BOSCH | 1 | 12411740379 | $238.94 | UKONČENO | Shop at ECS Tuning | |||
| 01 | RP REMAN startér | 1,4 KW | 1 | 12412344247 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | RP REMAN startér | 1,4 KW | 1 | 12412354709 | Shop at ECS Tuning | |||||
| 03 | Šroub Torx | M10X65-8.8-ZNS3 | 2 | 07129904681 | $1.64 | Shop at ECS Tuning | ||||
| 04 | Magnetický spínač | MARELLI | 1 | 12411433017 | $103.45 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Magnetický spínač | BOSCH | 1 | 12417515393 | $83.43 | +core | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
