Vedení startér - alternátor - akumulátor for BMW 2 Series U06 Active Tourer 218d (2025)

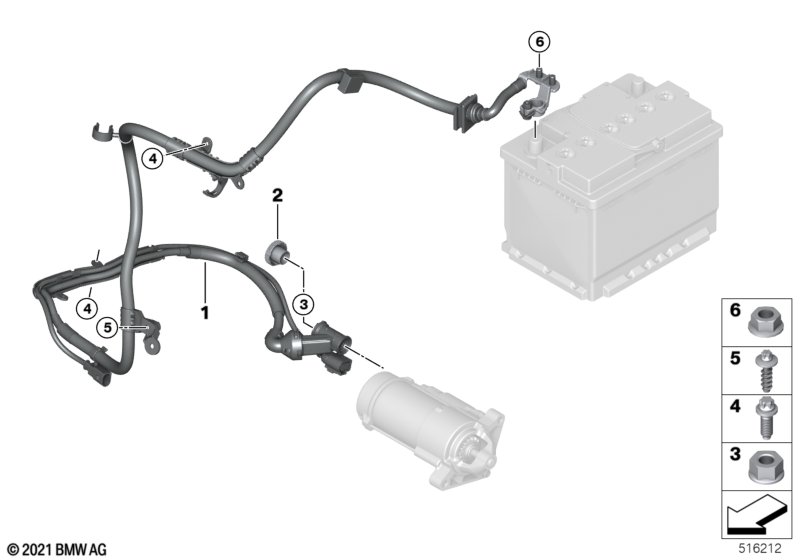

This Vedení startér - alternátor - akumulátor technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vedení startér - alternátor - akumulátor | 1 | 12428471961 | Shop at ECS Tuning | ||||||
| pouze společně s | ||||||||||
| -- | Vedení svorka 50 | 1 | 12517925918 | NoS | Shop at ECS Tuning | |||||
| 02 | Víko těsnicí skříně | 1 | 12528585259 | Shop at ECS Tuning | ||||||
| 03 | Přírubová matice | M8 | 1 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Šroub s válc.hlavou s vnit.šestihranem | 4 | 07119908062 | Shop at ECS Tuning | ||||||
| 05 | Šroub ASA závitořezný | M6X18 | 1 | 11367609963 | Shop at ECS Tuning | |||||
| 06 | Šestihranná matice | M8-A2-70 | 1 | 07119904920 | $1.29 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
