Alternátor for BMW 5 Series G60 Limuzína 520d (2025)

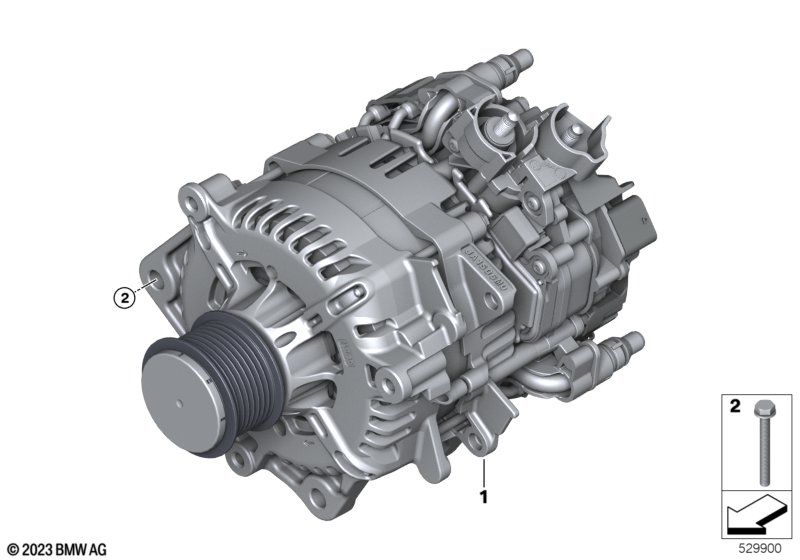

This Alternátor technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Limuzína 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Startovací generátor | 1 | 12317926530 | Shop at ECS Tuning | ||||||
| pouze společně s | ||||||||||
| -- | Pouzdro | 4 | 11289888617 | Shop at ECS Tuning | ||||||
| 02 | Šestihranný šroub | M10X90-U1-8.8 | 2 | 07119907843 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Limuzína 520d Alternátor?
- This technical diagram illustrates the Alternátor within the Elektrika motoru group for the 5 Series G60 Limuzína 520d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Startovací generátor (Part #12317926530).
- Which models use the hardware listed in this Alternátor?
- The hardware and components featured in the Alternátor are specific to the 5 Series G60 Limuzína 520d produced during 2025. These technical specifications ensure that parts like the Startovací generátor (12317926530) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternátor assembly?
- Each item in the Alternátor corresponds to the numbered list below the illustration. For the 5 Series G60 Limuzína 520d, you can identify the Startovací generátor by locating its position on the schematic, which then links to the official BMW part number 12317926530 for the Elektrika motoru section.
