Spouštěč for BMW 5 Series G60 Limuzína 520d (2025)

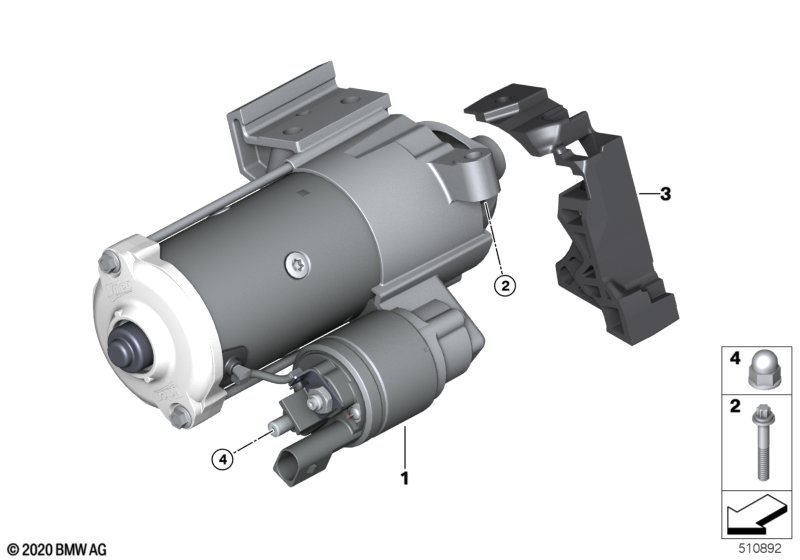

This Spouštěč technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Limuzína 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Startér | 1 | 12418490091 | Shop at ECS Tuning | ||||||
| 02 | Šroub s válc.hlavou s vnit.šestihranem | BM8X60 | 3 | 07129907896 | Shop at ECS Tuning | |||||
| 03 | Akustická zástrčka | VALEO | 1 | 12418588900 | Shop at ECS Tuning | |||||
| 04 | Uzavřená matice | M8 | 1 | 12528583524 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Limuzína 520d Spouštěč?
- This technical diagram illustrates the Spouštěč within the Elektrika motoru group for the 5 Series G60 Limuzína 520d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Startér (Part #12418490091).
- Which models use the hardware listed in this Spouštěč?
- The hardware and components featured in the Spouštěč are specific to the 5 Series G60 Limuzína 520d produced during 2025. These technical specifications ensure that parts like the Startér (12418490091) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Spouštěč assembly?
- Each item in the Spouštěč corresponds to the numbered list below the illustration. For the 5 Series G60 Limuzína 520d, you can identify the Startér by locating its position on the schematic, which then links to the official BMW part number 12418490091 for the Elektrika motoru section.
