Vedení startér - alternátor - akumulátor for BMW MINI F66 JCW

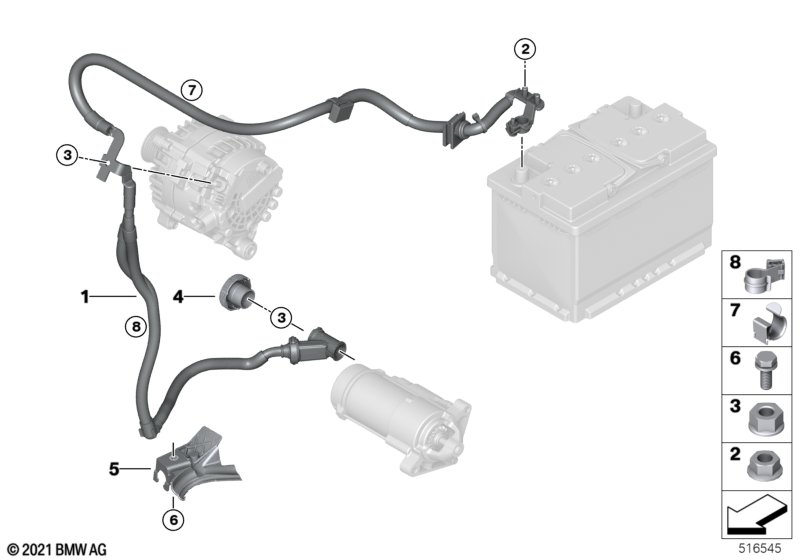

This Vedení startér - alternátor - akumulátor technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vedení startér - alternátor - akumulátor | 1 | 12427953075 | Shop at ECS Tuning | ||||||
| pouze společně s | ||||||||||
| -- | Ochranné víčko | 1 | 12425A22D40 | Shop at ECS Tuning | ||||||
| 02 | Šestihranná matice | M8-A2-70 | 1 | 07119904920 | $1.29 | Shop at ECS Tuning | ||||
| 03 | Přírubová matice | M8 | 2 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Víko těsnicí skříně | 1 | 12528585259 | Shop at ECS Tuning | ||||||
| 05 | Uchycení | 1 | 12527645649 | Shop at ECS Tuning | ||||||
| 06 | Šestihranný šroub s podložkou | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Kabelová svorka | 3 | 03/2025 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 07 | Svorka | 15-19 | 3 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
| 08 | Kabelová svorka | NW12-13 | 1 | 07145A3CF94 | Shop at ECS Tuning | |||||
