Startovací automatika for BMW 5 Series E12 520 (1976)

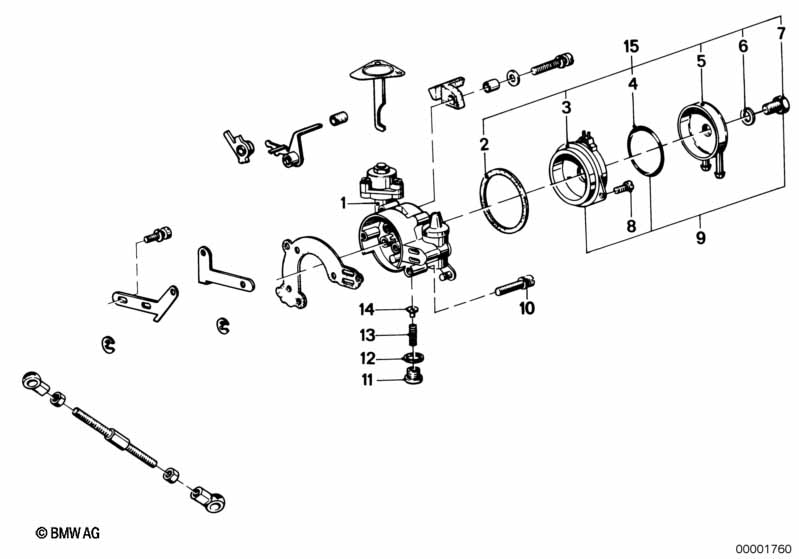

This Startovací automatika technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Těleso startéru | 2 | 12/1973 | 13111705797 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Izolační příruba | 2 | 13111278982 | $1.55 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Víko startéru | 2 | 13111273951 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | O-kroužek | 2 | 13111252698 | $7.32 | Shop at ECS Tuning | |||||
| 05 | Víko | 2 | 13111252697 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Těsnicí kroužek | 2 | 13111253435 | $0.86 | Shop at ECS Tuning | |||||
| 07 | Šestihranný šroub | 2 | 13111258883 | UKONČENO | Shop at ECS Tuning | |||||
| 08 | Šroub s válcovou hlavou | 6 | 13111253923 | UKONČENO | Shop at ECS Tuning | |||||
| 09 | Sada víko spouštěče | 2 | 13111709148 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Šroub s válcovou hlavou | 2 | 13111258174 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Šroub s válcovou hlavou | 2 | 13111260918 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Šroubový uzávěr | 2 | 13111262692 | $4.30 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Těsnicí kroužek | 2 | 13111258179 | $0.25 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Pružina | 2 | 13111262691 | $1.77 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Spodní ventil | 2 | 13111262690 | $20.53 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Sada víko spouštěče | 2 | 13111709148 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
