Řídicí jednotka for BMW 7 Series E23 735i (1982)

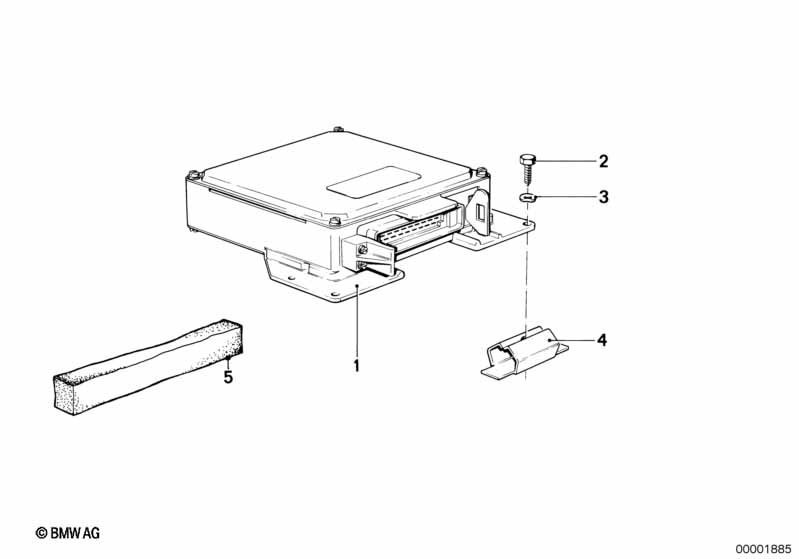

This Řídicí jednotka technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Řídicí jednotka | ML2.1 | 1 | 09/1982 | 09/1984 | 12140028579 | Shop at ECS Tuning | |||
| Pro vozidla s Provedení Švýcarsko nebo Provedení Austrálie |
L804A=Ano L810A=Ano |
|||||||||
| 01 | Řídicí jednotka | 1 | 09/1982 | 09/1984 | 12141286035 | $1489.86 | Shop at ECS Tuning | |||
| 02 | Šestihranný šroub na plech | ST5,5X25-C-Z2 | 4 | 07119916957 | $0.30 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Pružná podložka černá | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Podložka | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Pružná podložka | B6-ZNS3 | 4 | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Prestol klec | A5,6 | 4 | 07129925770 | $1.15 | UKONČENO | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
