Hrdlo škrticí klapky for BMW 3 Series E30 318i (1993)

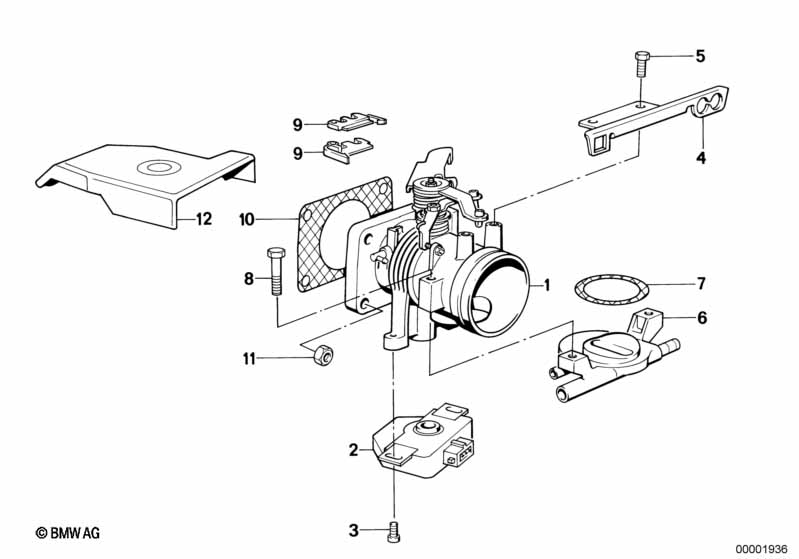

This Hrdlo škrticí klapky technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hrdlo škrticí klapky | 1 | 13541714524 | SI 130290256 | Shop at ECS Tuning | |||||
| 02 | Spínač škrticí klapky | 1 | 13541717603 | $108.00 | Shop at ECS Tuning | |||||
| 03 | Šroub s válcovou hlavou | M4 X 9,2 | 2 | 13541705562 | $0.93 | Shop at ECS Tuning | ||||
| 04 | Držák lanovod plynu | 1 | 13541717657 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Topný prvek | 1 | 13541727007 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | O-kroužek | 33X1,5 | 1 | 13541721086 | $1.88 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub s podložkou | M6X35-U1-8.8 | 2 | 07119904589 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Ložisko lanovod plynu | 2 | 13541709712 | Shop at ECS Tuning | ||||||
| 10 | Těsnění bez azbestu | 1 | 13541709714 | Shop at ECS Tuning | ||||||
| 11 | Šestihranná matice s podložkou | AM6-8-ZNNIV SI | 4 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Kryt | 1 | 13541715399 | $10.51 | Shop at ECS Tuning |
Notes
- SI = Service-Information (Servisní informace)
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Hrdlo škrticí klapky?
- This technical diagram illustrates the Hrdlo škrticí klapky within the Příprava paliva group for the 3 Series E30 318i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Hrdlo škrticí klapky (Part #13541714524).
- Which models use the hardware listed in this Hrdlo škrticí klapky?
- The hardware and components featured in the Hrdlo škrticí klapky are specific to the 3 Series E30 318i produced during 1993. These technical specifications ensure that parts like the Hrdlo škrticí klapky (13541714524) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hrdlo škrticí klapky assembly?
- Each item in the Hrdlo škrticí klapky corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Hrdlo škrticí klapky by locating its position on the schematic, which then links to the official BMW part number 13541714524 for the Příprava paliva section.
