Zásobování palivem/čerpadlo/filtr for BMW 5 Series E12 525

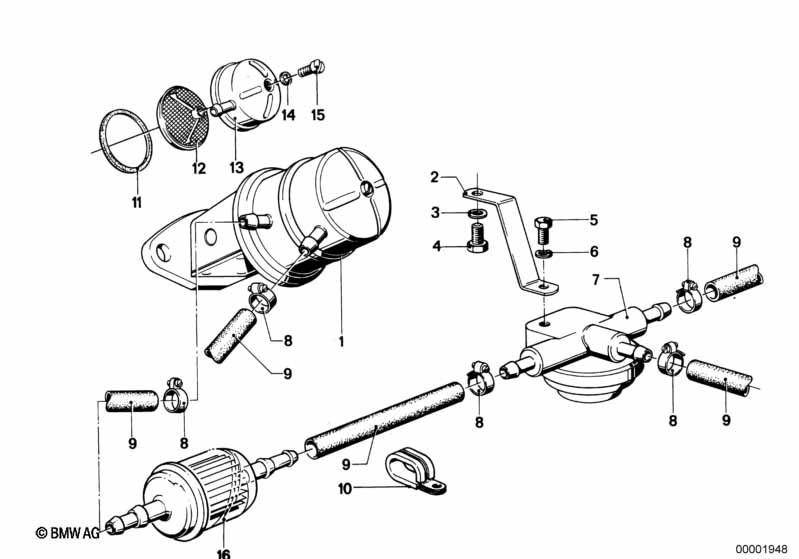

This Zásobování palivem/čerpadlo/filtr technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Palivové čerpadlo | 1 | 09/1976 | 13311260677 | $219.99 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Palivové čerpadlo | 1 | 09/1976 | 13311263766 | $155.97 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Uchycení | 1 | 09/1976 | 13311261553 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Pružná podložka černá | B6-ZN | 1 | 09/1976 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 03 | Podložka | 5.3-140 HV-ZNS | 1 | 09/1976 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 03 | Pružná podložka | B6-ZNS3 | 1 | 09/1976 | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | ||
| 04 | Šestihranný šroub | M6X12-8.8-ZNNIV | 1 | 09/1976 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 05 | Šestihranný šroub | M5X12-8.8 ZN | 1 | 09/1976 | 07119913231 | $1.42 | Shop at ECS Tuning | |||
| 06 | Pružná podložka | B5 | 1 | 09/1976 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 07 | Zpětný ventil | 1 | 09/1976 | 13311263767 | $115.39 | UKONČENO | Shop at ECS Tuning | |||
| 08 | hadicová spona | L12-15 | 8 | 09/1976 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 09 | Palivová hadice | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 10 | Spona | D=2X14/15 | 1 | 13311272726 | $3.17 | UKONČENO | Shop at ECS Tuning | |||
| 11 | Těsnicí kroužek | APG | 1 | 09/1976 | 13311260982 | $2.19 | UKONČENO | Shop at ECS Tuning | ||
| 12 | Palivový filtr | APG | 1 | 09/1976 | 13311260979 | $16.03 | UKONČENO | Shop at ECS Tuning | ||
| 13 | Víčko | APG | 1 | 09/1976 | 13311260978 | UKONČENO | Shop at ECS Tuning | |||
| 14 | Těsnicí kroužek | 1 | 09/1976 | 13311260981 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Šroub s válcovou hlavou | 1 | 09/1976 | 13311260980 | UKONČENO | Shop at ECS Tuning | ||||
| 16 | Palivový filtr | 6+8 MM | 1 | 09/1976 | 13321277497 | $2.78 | Shop at ECS Tuning |
