Řídicí jednotka L-Jetronic for BMW 3 Series E30 320i (1990)

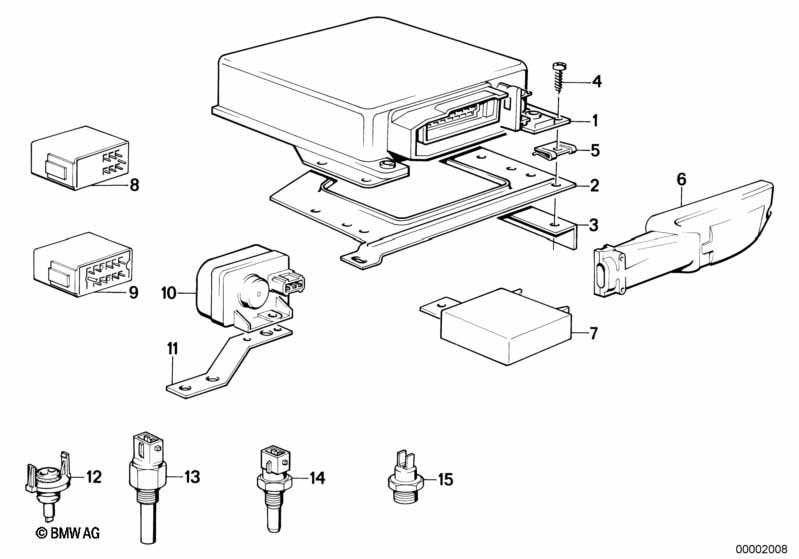

This Řídicí jednotka L-Jetronic technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Matice na plech | ST6,3-1-ZNS3 | 4 | 07129904231 | Shop at ECS Tuning | |||||
| Pro vozidla s Provedení Japonsko |
L807A=Ano |
|||||||||
| 05 | Šestihranný šroub na plech | ST6,3X19-C-Z1 | 4 | 07119916970 | $0.30 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Řídicí jednotka L-Jetronic?
- This technical diagram illustrates the Řídicí jednotka L-Jetronic within the Příprava paliva group for the 3 Series E30 320i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Matice na plech (Part #07129904231).
- Which models use the hardware listed in this Řídicí jednotka L-Jetronic?
- The hardware and components featured in the Řídicí jednotka L-Jetronic are specific to the 3 Series E30 320i produced during 1990. These technical specifications ensure that parts like the Matice na plech (07129904231) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Řídicí jednotka L-Jetronic assembly?
- Each item in the Řídicí jednotka L-Jetronic corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Matice na plech by locating its position on the schematic, which then links to the official BMW part number 07129904231 for the Příprava paliva section.
