Měřič hmotnosti vzduchu for BMW 7 Series E38 750iLP (2001)

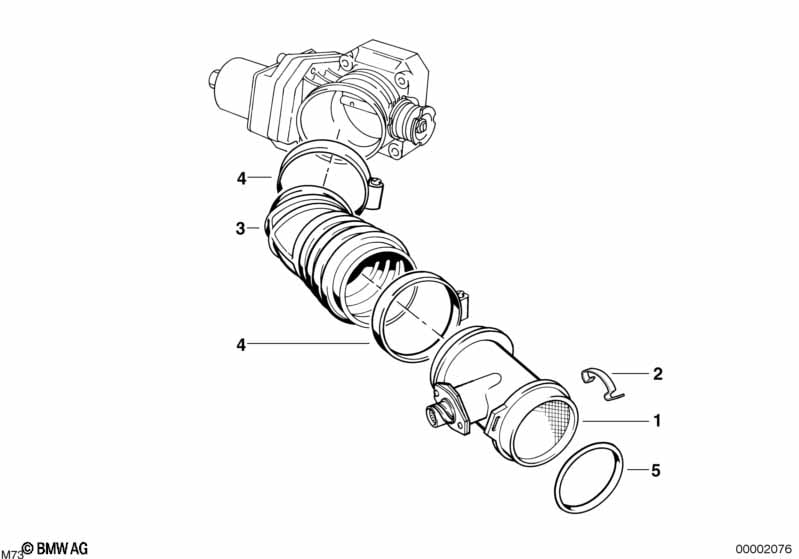

This Měřič hmotnosti vzduchu technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Teplotní snímač hmotnosti vzduchu | 4-POL | 2 | 13621736224 | $402.32 | Shop at ECS Tuning | ||||
| 02 | Třmen pružiny | L=42MM | 4 | 13711716113 | $1.16 | Shop at ECS Tuning | ||||
| 03 | Vlnovec | 2 | 05/1997 | 13711433540 | $16.32 | UKONČENO | Shop at ECS Tuning | |||
| 04 | hadicová spona | L71-78 | 4 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 05 | O-kroužek | 69X6MM | 2 | 13711710059 | $3.75 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 750iLP Měřič hmotnosti vzduchu?
- This technical diagram illustrates the Měřič hmotnosti vzduchu within the Příprava paliva group for the 7 Series E38 750iLP produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Teplotní snímač hmotnosti vzduchu (Part #13621736224).
- Which models use the hardware listed in this Měřič hmotnosti vzduchu?
- The hardware and components featured in the Měřič hmotnosti vzduchu are specific to the 7 Series E38 750iLP produced during 2001. These technical specifications ensure that parts like the Teplotní snímač hmotnosti vzduchu (13621736224) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Měřič hmotnosti vzduchu assembly?
- Each item in the Měřič hmotnosti vzduchu corresponds to the numbered list below the illustration. For the 7 Series E38 750iLP, you can identify the Teplotní snímač hmotnosti vzduchu by locating its position on the schematic, which then links to the official BMW part number 13621736224 for the Příprava paliva section.
