Vstřikovací čerpadlo Diesel for BMW 3 Series E36 325tds (1998)

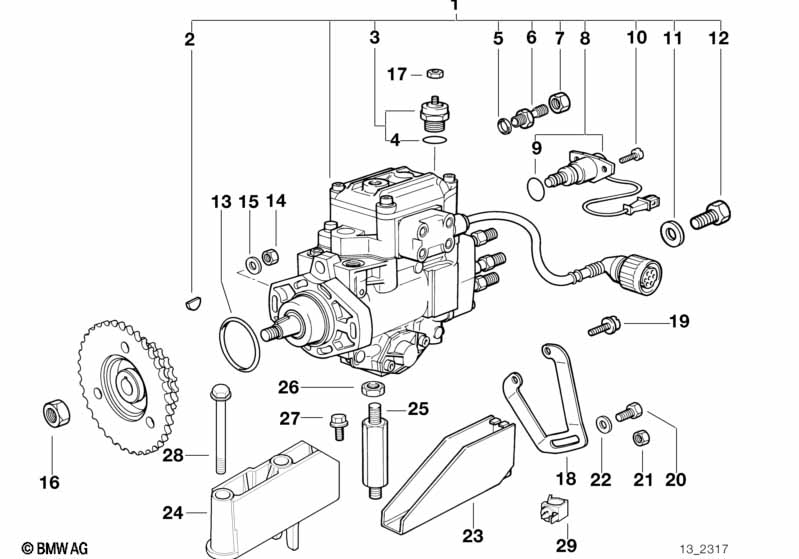

This Vstřikovací čerpadlo Diesel technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vstřikovací čerpadlo Diesel | DDE2.1 | 1 | 01/1994 | 13512244966 | $3219.66 | Shop at ECS Tuning | |||
| 01 | Vstřikovací čerpadlo | DDE2.1 | 1 | 01/1994 | 13512245206 | $2450.31 | Shop at ECS Tuning | |||
| 02 | Kotoučová pružina | 1 | 01/1994 | 13511288587 | $4.50 | Shop at ECS Tuning | ||||
| 03 | Magnetický spínač | ELAB | 1 | 01/1994 | 13512243295 | $150.00 | Shop at ECS Tuning | |||
| 04 | O-kroužek | 8,5X2,5 | 1 | 01/1994 | 13511705170 | $3.11 | Shop at ECS Tuning | |||
| 05 | Těsnicí kroužek | A12X15,5 AL | 1 | 01/1994 | 07119963130 | $0.09 | Shop at ECS Tuning | |||
| 06 | Přepouštěcí ventil | OUT | 1 | 01/1994 | 13512245017 | Shop at ECS Tuning | ||||
| 07 | Uzavřená matice | 1 | 01/1994 | 13512245573 | Shop at ECS Tuning | |||||
| 08 | Magnetický ventil přesuvník vstřiku | 1 | 01/1994 | 13512247401 | Shop at ECS Tuning | |||||
| 09 | O-kroužek | 1 | 01/1994 | 13512245571 | $3.85 | Shop at ECS Tuning | ||||
| 10 | Šroub s válcovou hlavou | 1 | 01/1994 | 13512245572 | Shop at ECS Tuning | |||||
| 11 | Těsnicí kroužek | 1 | 01/1994 | 13511288582 | $1.30 | Shop at ECS Tuning | ||||
| 12 | Odvzdušňovací šroub | 1 | 01/1994 | 13511288583 | $2.43 | Shop at ECS Tuning | ||||
| 13 | O-kroužek | 63,17X2,62MM | 1 | 01/1994 | 13512245606 | Shop at ECS Tuning | ||||
| 14 | Šestihranná matice s přírubou | M8 | 1 | 01/1994 | 11611713432 | $0.43 | UKONČENO | Shop at ECS Tuning | ||
| 15 | Podložka | 18X8,4X3 | 1 | 01/1994 | 13512243795 | $0.30 | Shop at ECS Tuning | |||
| 16 | Šestihranná matice s podložkou | M12 | 1 | 01/1994 | 13522247450 | $1.23 | Shop at ECS Tuning | |||
| 17 | Šestihranná matice | M5-8-ZNNIV SI | 1 | 01/1994 | 07119905729 | Shop at ECS Tuning | ||||
| 18 | Uchycení | 1 | 01/1994 | 13512244260 | Shop at ECS Tuning | |||||
| 19 | Šroub vnitřní Torx s podložkou | M6X25-U1-8.8 | 2 | 12/1995 | 07129905558 | $0.44 | Shop at ECS Tuning | |||
| 21 | Šestihranná matice | M8-8-ZNS3 | 1 | 01/1996 | 05/1999 | 07119904032 | $0.16 | Shop at ECS Tuning | ||
| 21 | Šestihranná matice | M8-8-ZNNIV SI | 1 | 01/1996 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 22 | Podložka | 8,4 | 1 | 01/1994 | 07119931331 | Shop at ECS Tuning | ||||
| 24 | Uchycení | 1 | 01/1996 | 13512246191 | Shop at ECS Tuning | |||||
| 28 | Šestihranný šroub s podložkou | M8X65-U1 | 2 | 01/1996 | 07119905401 | $1.80 | Shop at ECS Tuning | |||
| 29 | Kabelové držáky | 1 | 01/1996 | 24507557220 | $1.88 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325tds Vstřikovací čerpadlo Diesel?
- This technical diagram illustrates the Vstřikovací čerpadlo Diesel within the Příprava paliva group for the 3 Series E36 325tds produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Vstřikovací čerpadlo Diesel (Part #13512244966).
- Which models use the hardware listed in this Vstřikovací čerpadlo Diesel?
- The hardware and components featured in the Vstřikovací čerpadlo Diesel are specific to the 3 Series E36 325tds produced during 1998. These technical specifications ensure that parts like the Vstřikovací čerpadlo Diesel (13512244966) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vstřikovací čerpadlo Diesel assembly?
- Each item in the Vstřikovací čerpadlo Diesel corresponds to the numbered list below the illustration. For the 3 Series E36 325tds, you can identify the Vstřikovací čerpadlo Diesel by locating its position on the schematic, which then links to the official BMW part number 13512244966 for the Příprava paliva section.
